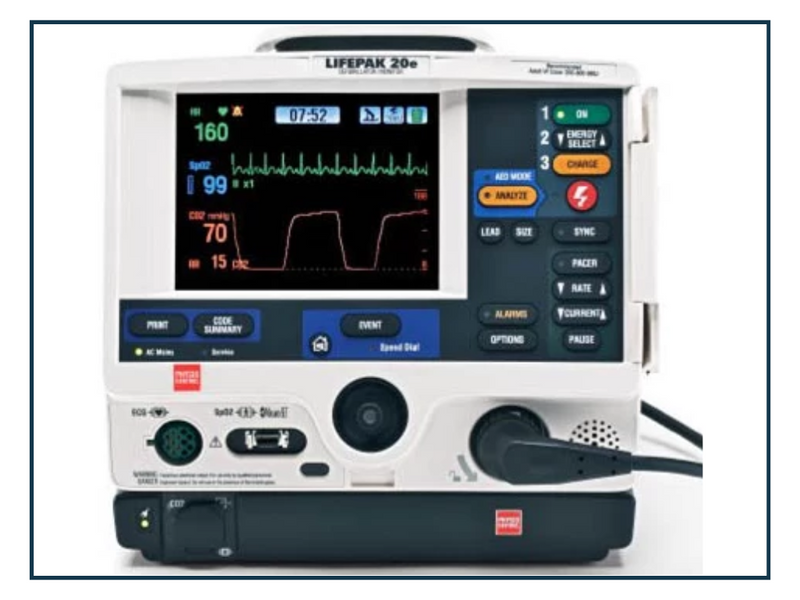

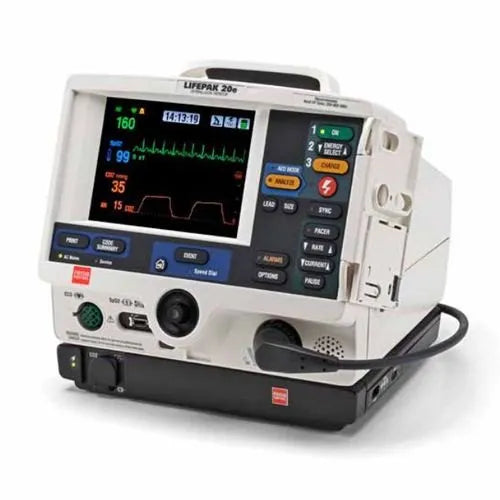

Lifepak 20E [Refurbished]

The LIFEPAK 20E series was the first defibrillator/monitor explicitly designed for the hospital market. Physio-Control continues to be at the forefront of improving patient care with 20e and CODE SUMMARY to report a critical event record, including a cardiorespiratory event, vital signs log and the associated waveforms.

Lifepak 20E Specifications:

General

• Brand: Lifepak
• Model: Lifepak 20E
• Category: Defibrillators
• Waveform: Biphasic Truncated Exponential
• Energy Accuracy (into 50 ohms): ±1 joule or 10% of the setting, whichever is greater
• Energy Accuracy (into any impedance of 25-100 ohms): ±2 joule or 15% of setting, whichever is greater

Dimensions

• Monitor weight (without paper or cables): 12.3 lbs. (5.58 kg)
• Module weight: 3.6 lbs. (1.3 kg)
• Height: 8.4 in (21.3 cm)
• Width: 10.3 in (26.2 cm)
• Depth: 10.3 in (26.2 cm)
• Dimensions with module (H x W x D): 10 x 10.3 x 11.7 in (25.4 x 26.2 x 29.7 cm)

Display

• Display size (W x H): 4.53 x 3.4 in (11.52 x 8.64 cm)
• Resolution: 320 x 240 dot color active LCD

Power

• Monitoring plus SpO2: 210 minutes (5 on low battery)
• Monitoring plus pacing (100ma, 60 ppm) and SpO2: 110 minutes (2 on low battery)
• Defibrillation (360J discharges): 140 minutes (3 on low battery)

Frequency Response

• Diagnostic: 0.05 to 150 H
• Diagnostic – User Configurable: 0.05 to 40 Hz
• Monitor: 0.67 to 40 Hz
• Monitor – User Configurable: 1 to 30 Hz
• Paddles: 2.5 to 30 Hz
• Analog ECG Output: 0.67 to 32 Hz (except 2.5 to 30 Hz for Paddles ECG)

Charge Time

• Time to 200J (fully charged battery): <5 seconds
• Time to 360J (fully charged battery): <7 seconds
• Time to 360J (not in low battery operations): <10 seconds

Features:

• LIFEPAK 20e defibrillator/monitor with BLS/ACLS front door (1 per unit)
• cprMAX technology version 1.5 (consistent with 2005 AHA/ERC Guidelines)
• Active color matrix LCD screen
• Manual and AED functionality
• Built-in AC power
• Lithium-ion rechargeable internal battery
• ADAPTIV™ Biphasic, escalating energy up to 360J
• Synchronized cardioversion
• 3- and 5-wire ECG monitoring capability with lead select (3-lead ECG cable included with ship kit)
• CODE SUMMARY critical event record with data port
