Sonosite Titan Portable Ultrasound Machine with 1 Transducer [Refurbished]

Sale price$3,900.00

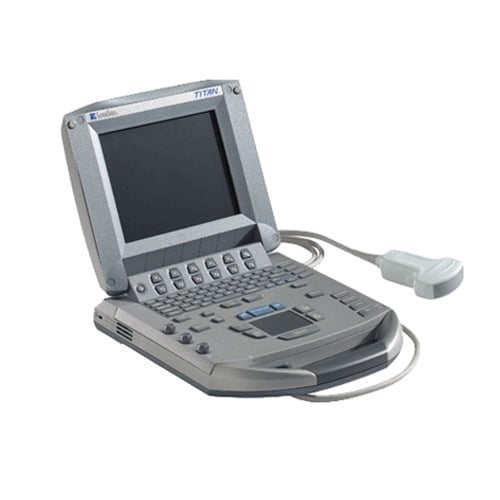

The SonoSite TITAN is designed for those who require the features and functionality of a traditional ultrasound system, but the mobility and durability that only SonoSite can deliver. The innovative Sonosite TITAN Ultrasound Machine offers the amazing image quality and technical capabilities of cart-based machines with the ease and flexibility of a hand-carried system.

Sonosite Titan Specifications:


  • Brand: Sonosite Titan
  • Category: Ultrasound Equipment
  • Weight: 7.7 lbs
  • Dimensions: 12” L x 11” W x 3” H
  • Display: Integrated fully digital 8.4” TFT Color Liquid Crystal Display
  • Battery: Rechargeable Lithium Ion, up to 4 hours operation time
  • Electrical Info: 100 – 240 VAC | 50 – 60 Hz

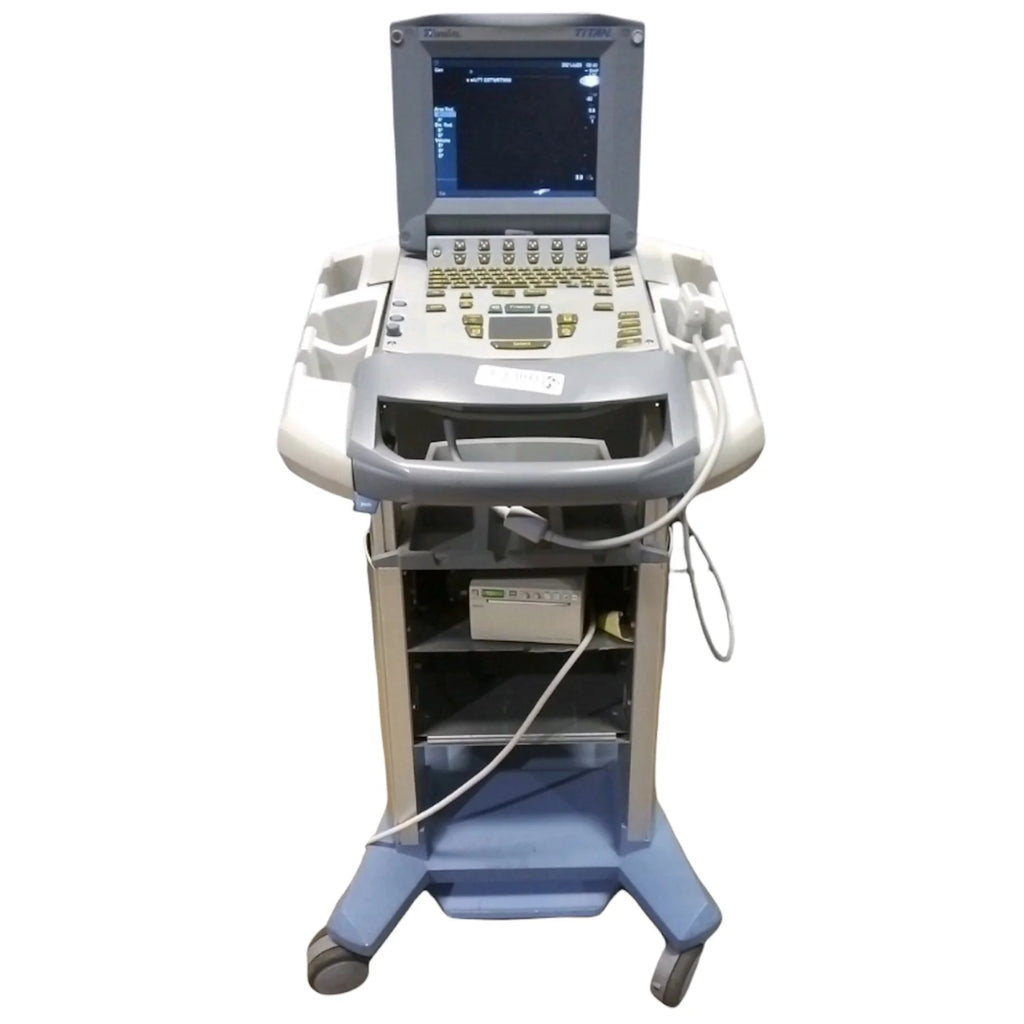

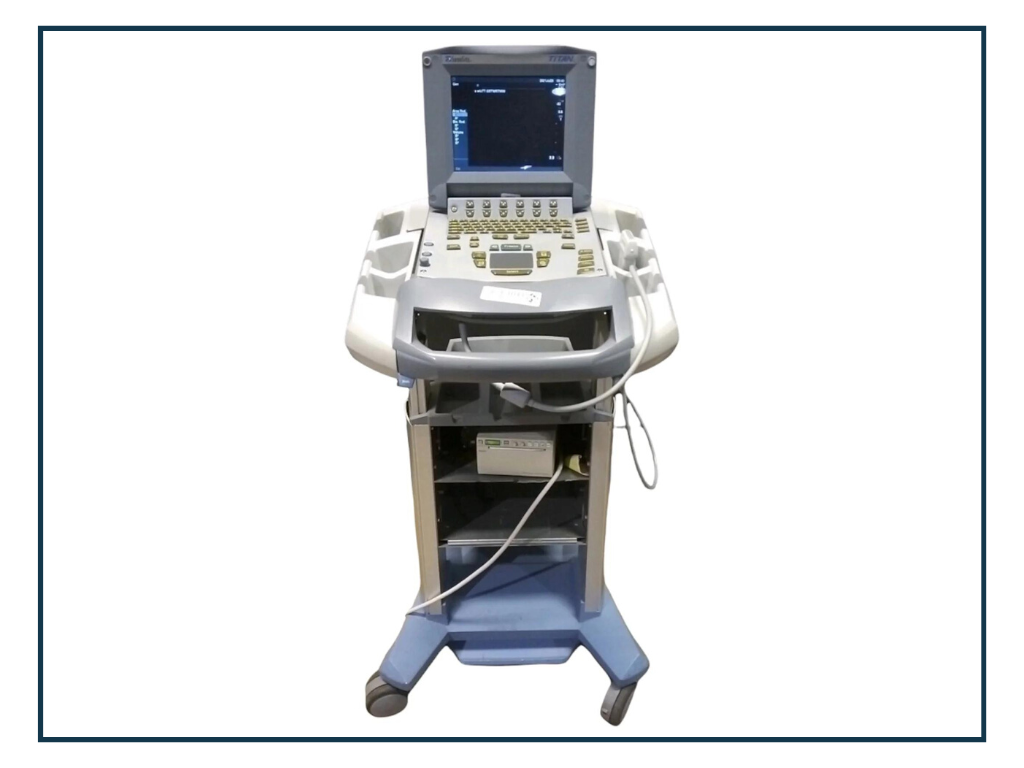

Mobile Docking System

  • Mobile Docking System dimensions: 31.9″ L x 22.6″ W x adjustable height 33.2″ to 45.1″.
  • Storage available for fully integrated printer, VCR or DVD.
  • Optional connector for 3 transducers – selection by simple electronic switching.
  • Optional 12.1″ (diagonal) monitor.

Imaging Modes

  • 2D.
  • Split screen.
  • Zoom.
  • Color power Doppler.
  • M-Mode: 3 sweep speeds 1/2:1/2, 1/3:2/3 or full screen options.
  • Pulsed wave (PW) Doppler.
  • Continuous wave (CW) Doppler.
  • Velocity based color flow Doppler.
  • Duplex imaging 3 sweep speeds 1/2:1/2, 1/3:2/3 or full screen options.
  • Tissue Harmonic Imaging. (THI)

Measurement Tools

  • 2D Distance calipers – two sets Ellipse for area and circumference measurements.
  • M-Mode Distance and time caliper set Heart rate.
  • Doppler Velocity caliper – two sets.


  • Operates via battery or AC power – from 1.5 up to 4 hours on fully charged battery, new battery life depends on the active functions used and keystrokes.
  • Battery: Rechargeable lithium ion.
  • AC: Via universal power adapter, 100-240 VAC, 50-60 Hz.

Display Annotation

  • Text and pictograms – User-selectable, application-specific text via function keys.

Peripheral Connections

  • Composite video output (NTSC/PAL) to video cassette recorder, video printer or external monitor.
  • Connect to a PC via USB or ethernet to download high resolution bitmap images.
  • S-video output.
  • Ethernet output.
  • RGB output.

Optional Transducers

  • C11 Convex Array Transducer – 8-5 MHz broadband tightly curved array for neonatal and pediatric imaging. Applications include general imaging, abdominal, cardiac and neonatal heads. 2D, CPD, velocity color, PW and CW Doppler
  • C15 Convex Array Transducer – 4-2 MHz broadband tightly curved array. Applications include adult cardiology general imaging, abdominal. 2D, CPD, velocity color, PW and CW Doppler
  • L25 Linear Array Transducer – 10-5 MHz broadband linear array. Applications include nerve, vascular, and superficial imaging. 2D, CPD
  • L38 Linear Array Transducer – 10-5 MHz broadband linear array. Applications include small parts, breast, vascular, musculoskeletal & superficial imaging. 2D, CPD, velocity color, PW Doppler
  • C8 Endocavity Transducer – 8-5MHz broadband intracavitary transducer for prostate imaging. Biopsy guide available. 2D, CPD, DCPD, PW Doppler
  • ICT Endocavity Transducer – 8-5 MHz broadband intracavitary transducer for obstetric and gynecologic imaging. 2D, CPD, DCPD, PW Doppler


  • Stationary and mobile usage.
  • Point-of-care connectivity.
  • Flexible, cost-effective paths that enable users to acquire new components and software applications.
