Description

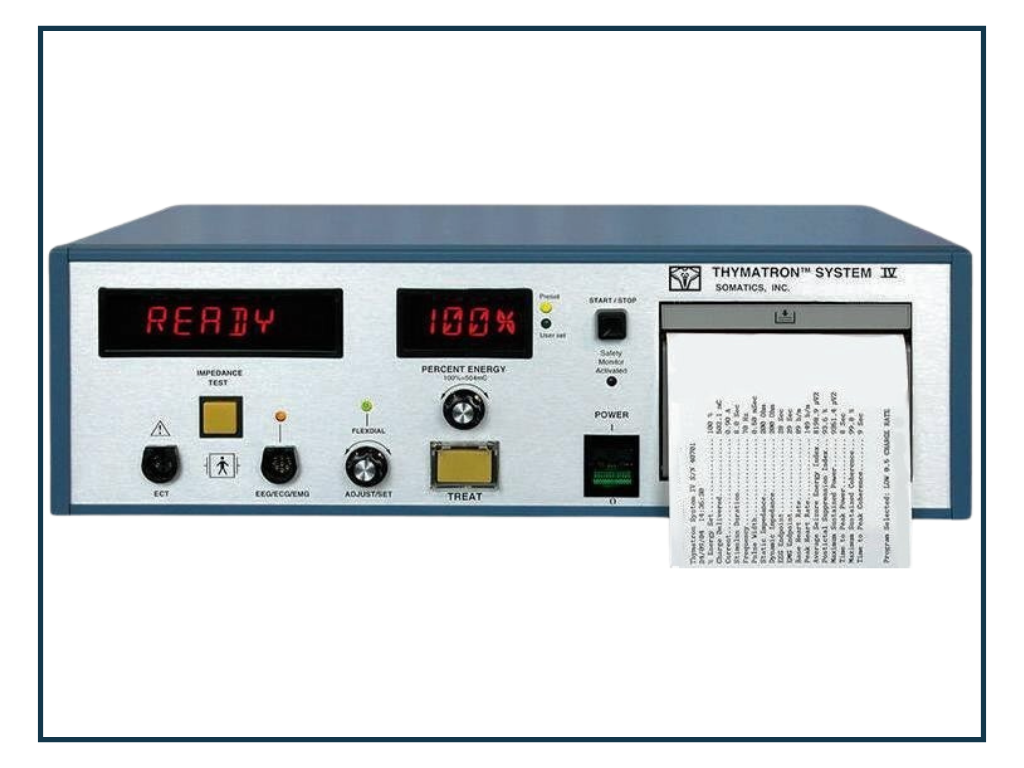

The IV ECT Therapy Unit provides higher stimulus current, deeper cerebral stimulus penetration, and better seizure generalization. It provides the most effective form of bilateral brief pulse ECT with a 0.5msec pulsewidth that minimizes side-effects and can be delivered at every stimulus dose including the maximum dose with efficient and accurate stimulus titration.
Specifications:
- Brand: Somatics
- Model: ECT
- Category: Electrosurgical Equipment
- Current: 0.9 A constant, isolated from line current
Frequency: 10 to 70 Hz in 10 Hz increments (to 140 Hz for 0.25 ms pulse) - Pulsewidth: 0.25 to 1.5 ms in 0.25 ms increments. The Thymatron System IV is available with either 0.25 or 0.30 ms pulsewidth for ultrabrief stimuli, but not both. In North America the customer can specify his choice. In some countries the ultrabrief pulsewidth provided is according to standard practice there.
- Duration: 0.14 to 8.0 s in increments of equal charge
- Maximum: 504 mC (99.4 J @ 220 ohm); 1008 mC (188.8 J @220 ohm) with double-dose option (where available)
Features:
- Optimal Stimulus Programs
- Maximum Sustained EEG Amplitude
- Continuous Digital Heart Rate Monitor
- Peak Heart Rate Printout
- EEG Coherence Analysis
- Seizure Energy Index
- Light-Emitting Elapsed Time Display
- Up to 8 Seconds of Stimulation
- Change Waveform without Altering Dose
- Audible EEG™ monitor
- Instant Impedance Test
- Extended Seizure Alert
- Patented Safety Monitor Circuit
** All used goods are reconditioned by Tomlin Medical Pty Ltd. Used goods are not endorsed or supplied by their original manufacturer and are not subject to any manufacturer warranty. All used goods are subject to the limited warranty provided by Tomlin Medical Pty Ltd.**
