Description

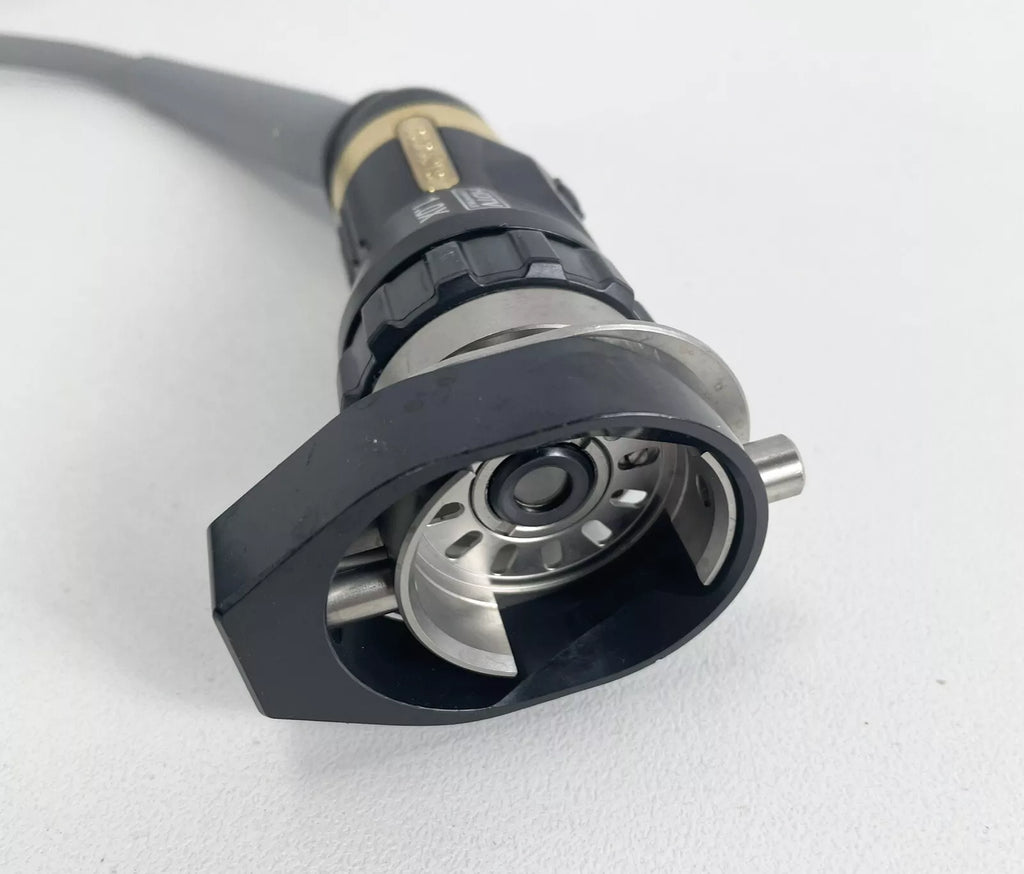

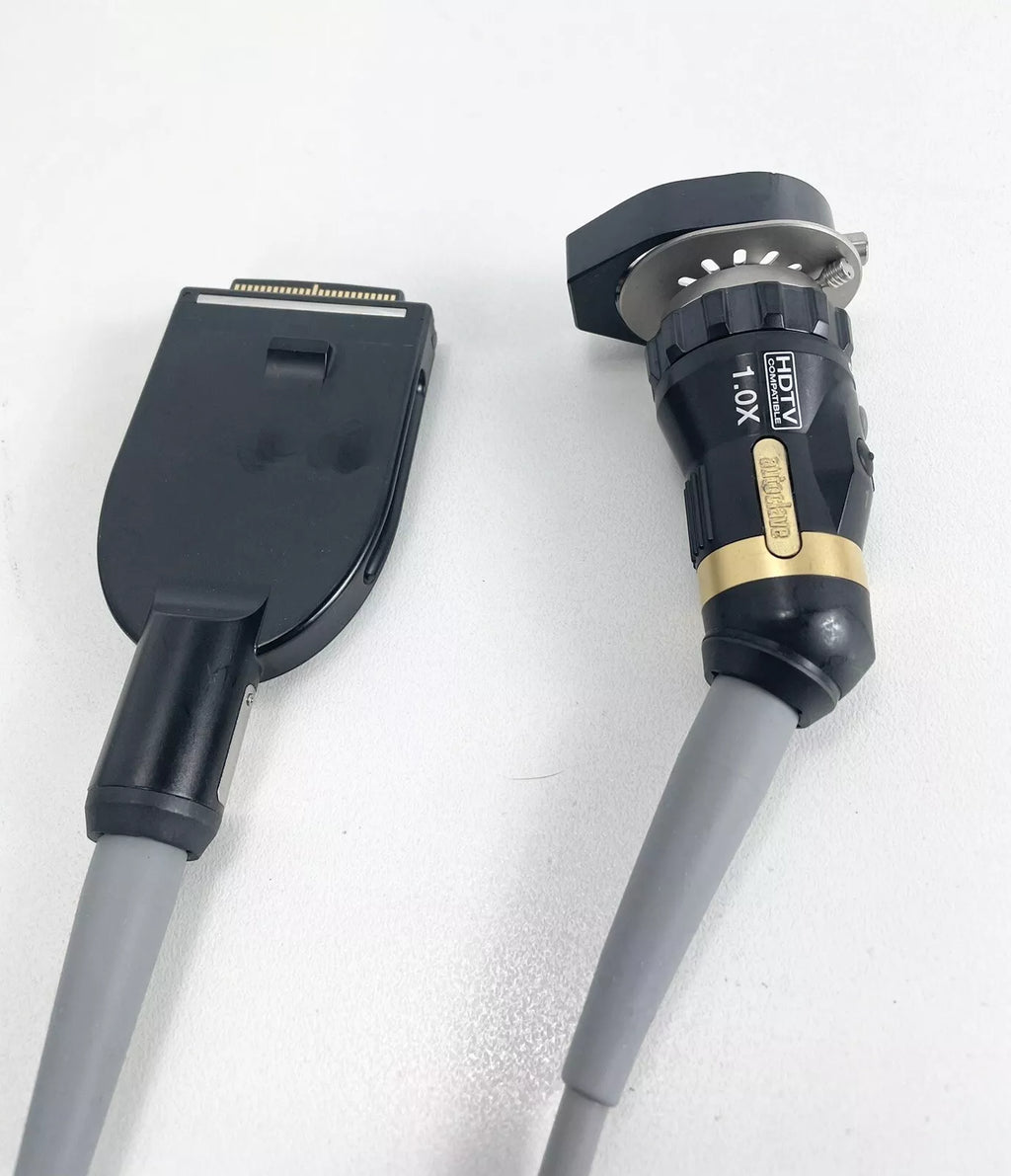

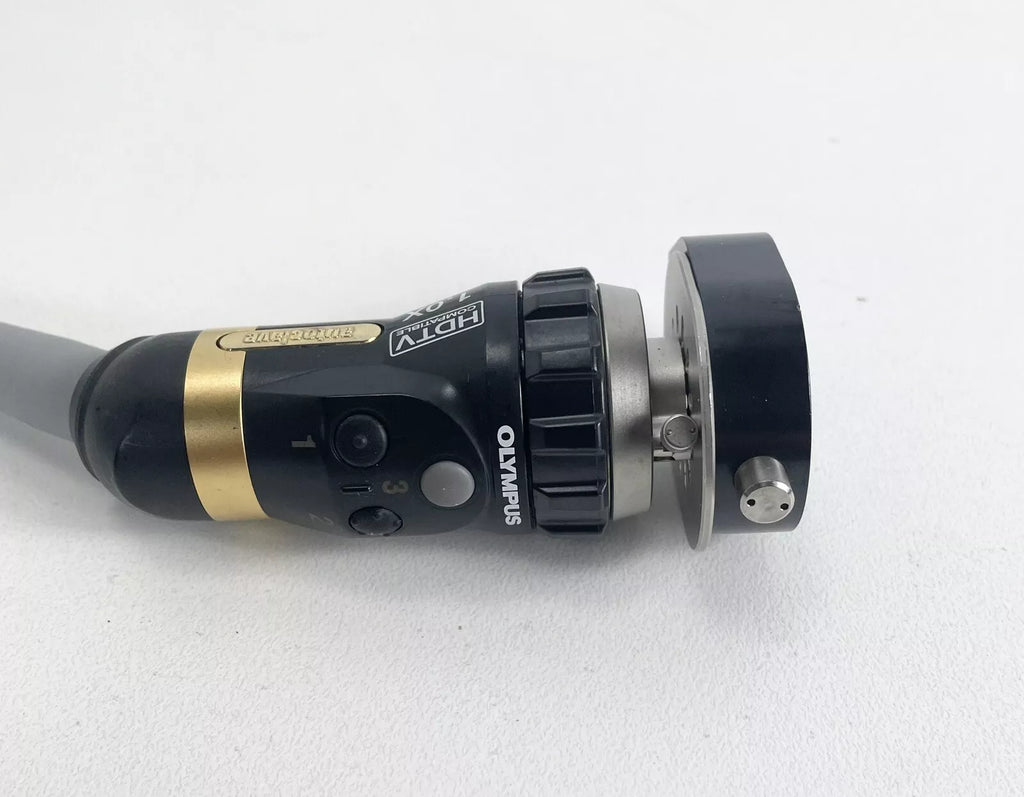

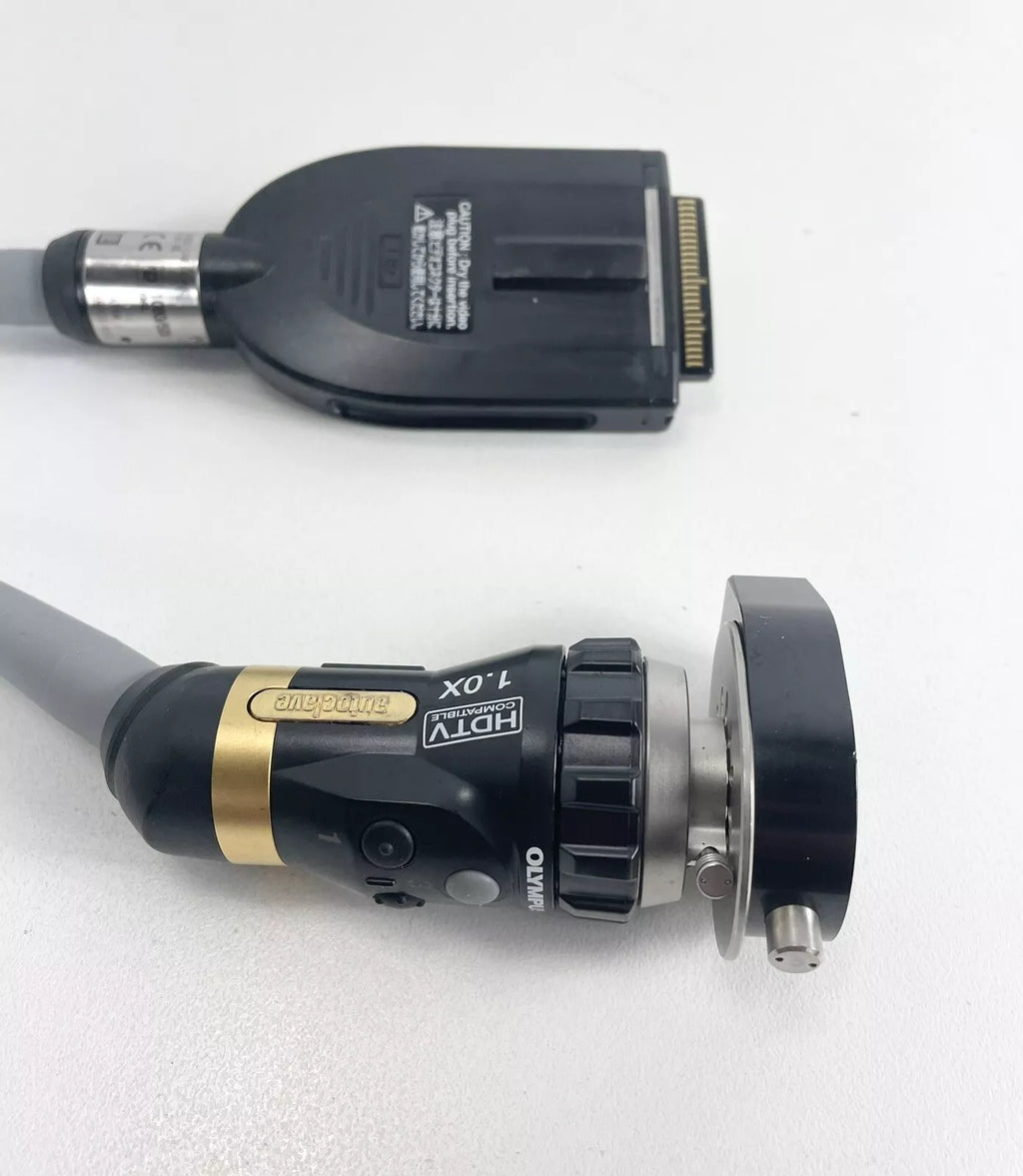

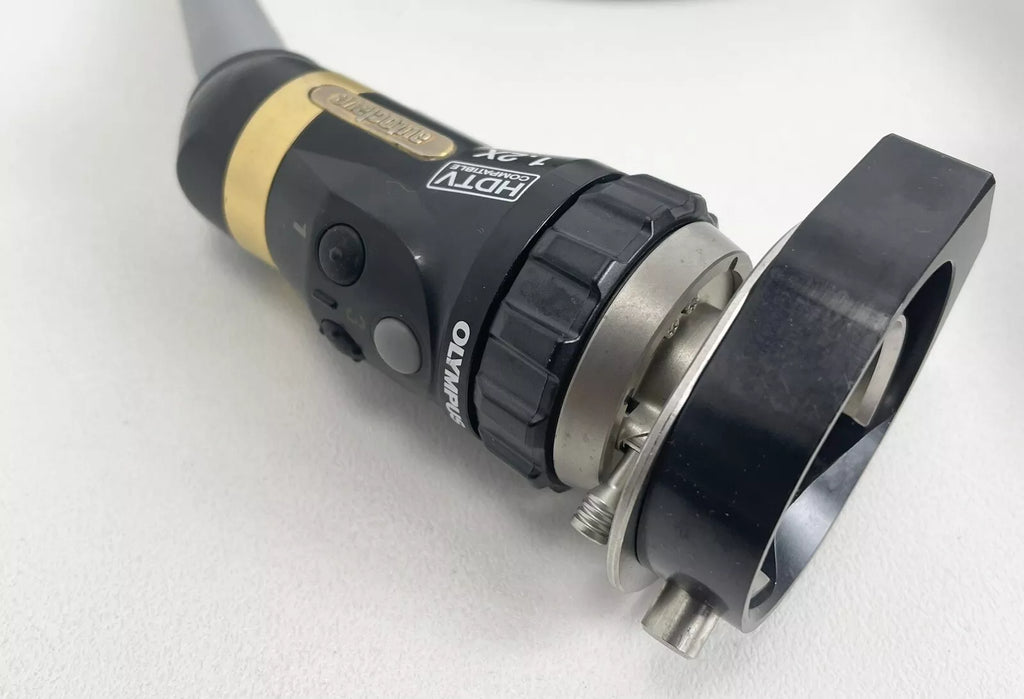

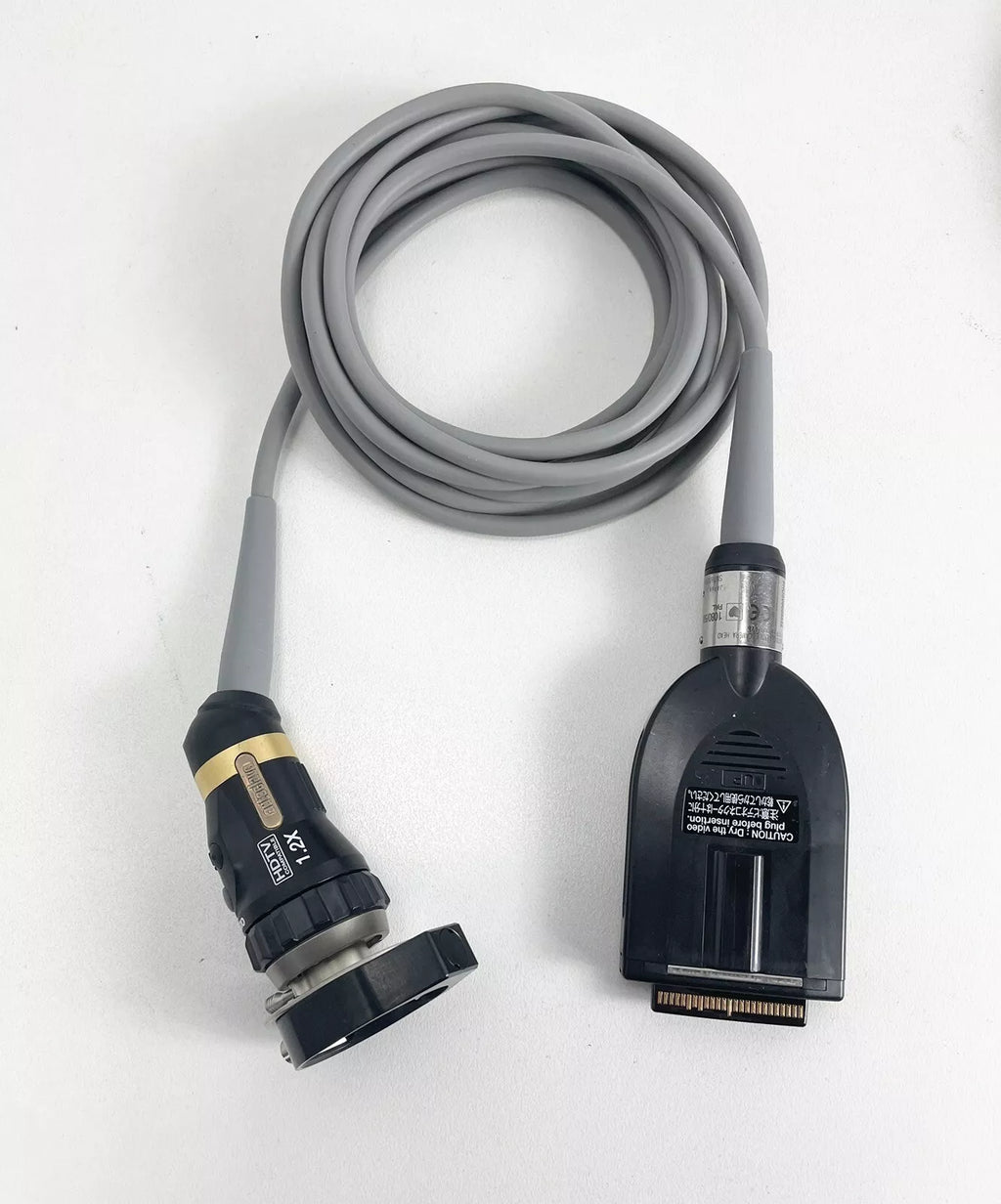

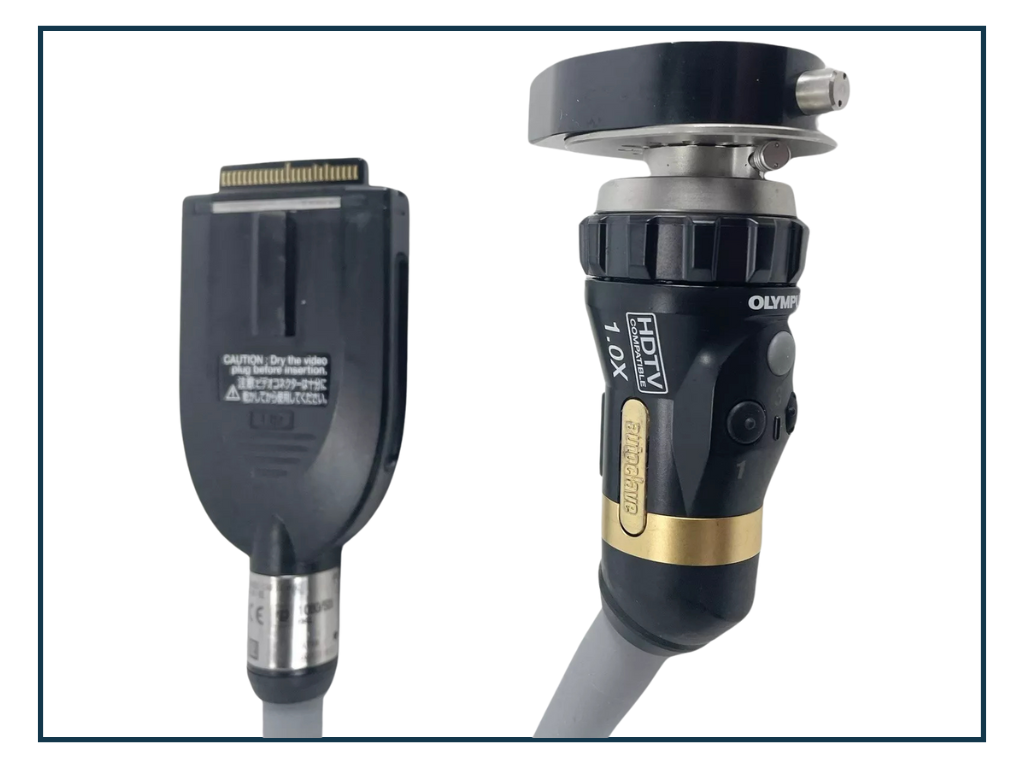

Olympus OTV-S7PROH-HD-10E HD Autoclavable Camera Heads with 1 times magnification feature 1080 effective scan lines with one touch zoom and remote control capabilities. The image can be enlarged up to 1.5 times the original size and HD image quality is maintained even in the zoom mode. Three switches can be programmed on the camera head control section with frequently used functions. The camera heads are available with an eye-piece or quick-lock connection to lock onto a full line of autoclavable telescopes.
Olympus Autoclavable Camera Head Specifications:
General
- Brand: Olympus
- Model: OTV S7Proh-HD-10E PAL
- Category: Endoscopy Equipment
Size
- Camera Head: 35 x 124 mm (focus rings x total length)
- Cable: 6.8 mm x 4 m
Eyepiece
- 10E: 1.0x eyepiece type
- 10Q: 1.0x quick-lock type
Observation
- Pickup System: Interline type CCD solid-state image pickup
- Magnification Ratio: Focal distance f = 15.8 – 31.3 mm
C/D/S
- Cleaning/Disinfection: Immersible in disinfectant solution.
- Sterilization: Ethylene oxide gas sterilization and steam (autoclavable) sterilization possible
Classification (Electromagnetic Equipment)
- Degree of Protection Against Electric Shock: Type C
- Degree of Protection Against Explosion: Product should be kept away from flammable gases
Features:
- High resolution images: With 1080i HD output, the camera head provides high-resolution images for incredibly sharp, accurate imaging.
- Full autoclavability: The camera head is tightly sealed, preventing lens fogging even after autoclave steam sterilization reprocessing.
- Programmable buttons: The control section has three built-in switches, allowing programming of frequently used functions, such as electronic zoom and image capture for convenient remote control.
- One touch zoom: The image can be enlarged to 1.2 or 1.5 times the original size, and high-definition, large images are maintained even in zoom mode.
- Quick-lock connection: Q models feature a quick-lock connection, allowing the camera head to be snap locked onto the telescope to ensure a tight fit.
** All used goods are reconditioned by Tomlin Medical Pty Ltd. Used goods are not endorsed or supplied by their original manufacturer and are not subject to any manufacturer warranty. All used goods are subject to the limited warranty provided by Tomlin Medical Pty Ltd.**
