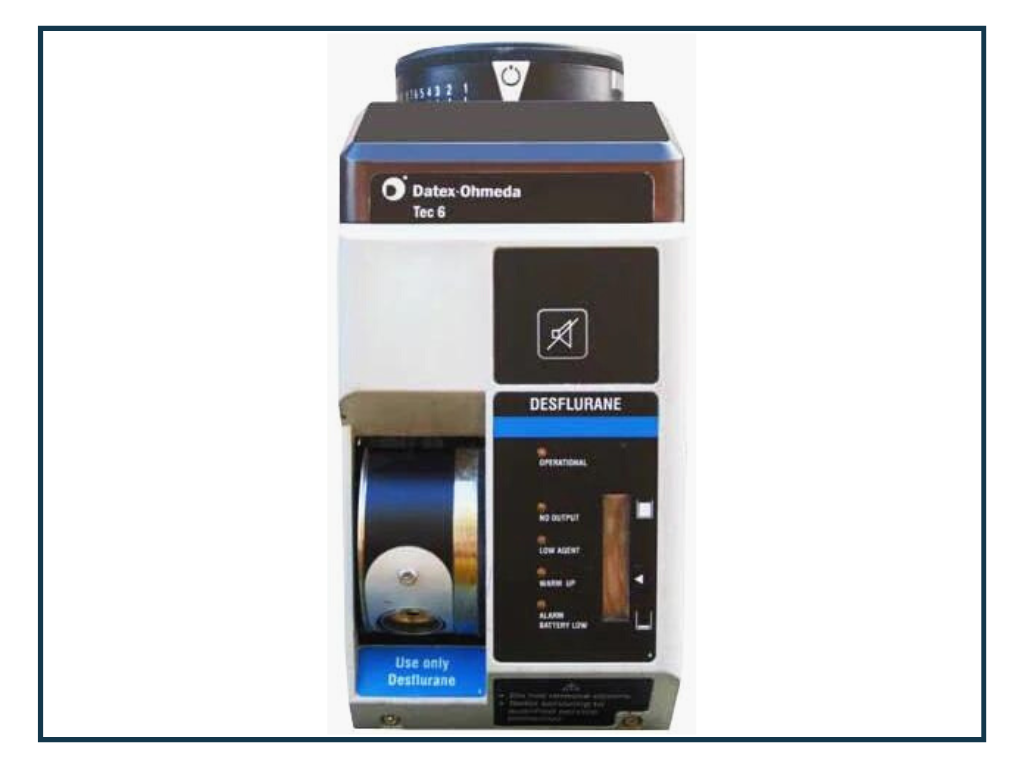

The GE Datex Ohmeda Tec 6 Plus is an ideal choice for facilities requiring a reliable, electronic desflurane anesthesia vaporizer. With an onboard LED screen to indicate no output, low agent, battery low, and warm-up, the Tec 6 Plus delivers constant, carefully monitored amounts of desflurane to your patient.
The Tec 6 Plus also features self-diagnostic protocols to check the machine every time it is turned on. It has a sump capacity of 425 mL, allowing clinicians to use the vaporizer for extended periods between refills. The vaporizer can be refilled during use.
TEC 6+ Vaporizer Specifications:General
- Brand: GE
- Model: Tec 6 Plus
- Category: Anaesthetic Equipment
- Display: LED
- Sump Capacity: 425ml
- Weight: 21 lbs (9.5 kg)
- Depth: 9.25 in (235 mm)
- Width: 4.33 in (110 mm)
- Height: 9.84 in (250 mm)
- Voltage requirement: 100 to 120V AC 50/60 Hz | 220 to 240V AC 50/60 Hz
- Power consumption: 250 VA nominal
- Current input: Maximum current requirement is 2.0A
- Concentration range: 1 to 18%
- Scale: 1% from 1 to 10% | 2% from 10 to 18%
- Calibrated flow range at 21 ± 2° C: 0.2 to 10 liters/minute
- Accuracy at 5 litres/min O2: ± 0.5% v/v of delivered agent or ± 15% dial setting (whichever is greater)
- Liquid capacity: 390 ml nominal volume (indicated on level display) | 240 ml refill capacity indicator nominal ml reserve (not indicated on level display)
- Flow resistance: Less than 50 cm H2O at 5 litres/minute of O2 at 21 °C | Less than 250 cm H2O at 15 litres/minute of O2 at 21 °C
- Battery: Duracell MN 1604 or VARTA Energy 2000
- Operating temperature range: 18 °C to 30 °C (64 °F to 86 °F)
- Operating humidity range: 30% to 75% relative humidity (non-condensing)
- Storage temperature range: -40 °C to 60 °C (-40 °F to 140°F)
- Storage relative humidity range: 0% to 95% relative humidity at 40 °C (non-condensing)
- Storage atmospheric pressure: 70.0 to 106.0 kPa
TEC 6+ Vaporizer Features:
- Various safety features make providing desflurane anesthesia safe and effective.
- Completes self-diagnostic exams each time the vaporizer is turned on.
- Pump capacity up to 425 mL, nearly two bottles of Desflurane, for extended use between refills.
- On-board LED display indicates: no output, low agent, battery low, warm-up.
- Refilling can be done while the vaporizer is in use.
- Unique Saf-T-Fill valve designed to fit the complementary Tec 6 Plus filling device, helping to prevent accidental release of vapours.
