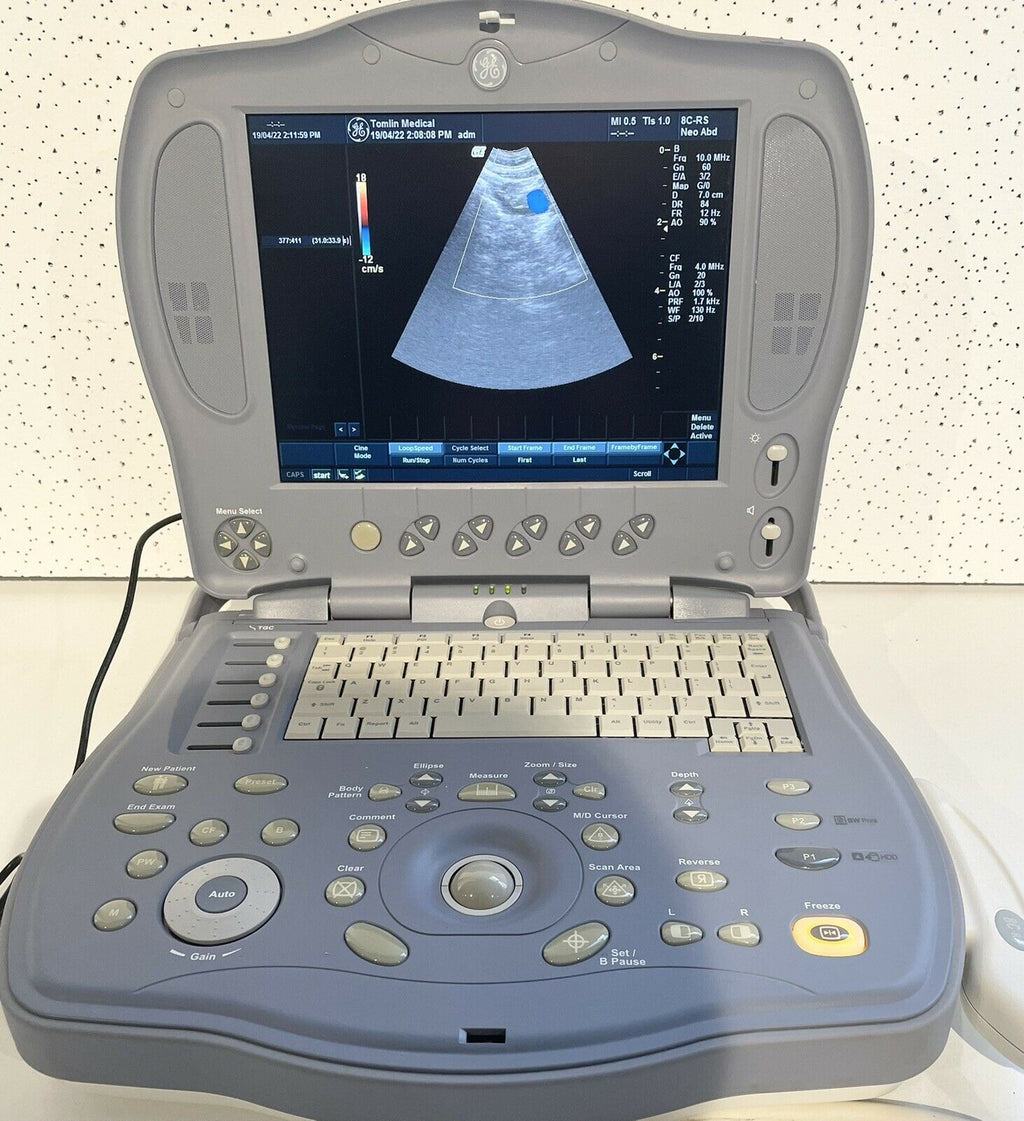

GE Logiq Book XP Enhanced with Micro Convex 8C Probe [Refurbished]

Sale price$9,639.00


The GE Logiq Book XP is a laptop-style portable ultrasound system. It can be used for various applications including; Endocrinology, Gastroenterology, Nephrology, Neurology, OB-GYN, Otorhinolaryngology, Podiatry, Urology, and Vascular. The GE Ultrasound offers colour doppler, spectral doppler, b-mode, m-mode, triplex, 3-D, and 150 frames per second TrueDigital Imaging. The Logiq Book XP comes with a 10-inch colour display that offers automatic image optimization for clear ad reliable images. The ultrasound system produces DICOM, JPEG, and AVI image files that can be stored on an external drive. Supplied with Micro 8C convex probe. Supplied with power adapter.”

GE Logiq Book XP Specifications:

  • Brand: GE
  • Category: Ultrasound Equipment
  • Mounting: Trolley Mounted
  • Image Dimension: Three Dimensional, Four Dimensional
  • Ultrasound Machine Features: Waterproof Probe
  • Image Colour: Colour
  • Model: Logiq Book XP enhanced
  • MPN: Logiq Book XP enhanced
  • Intended Use/Discipline: Ultrasound, Obstetrics & Gynaecology
  • UPC: Does not apply


  • Height: 78 mm (3.07 in) console only 99.5 mm (3.92 in) with handle.
  • Width: 350 mm (13.73 in).
  • Depth: 280 mm (11 in) console only 320 mm (12.6 in) with handle.
  • Weight: 4.2 kg (9.2 lb) (without battery).


  • Width: Minimum 305 mm and Maximum 336 mm.
  • Height: Minimum 245 mm and Maximum 271 mm.
  • Ergonomic, intuitive key layout. ‘Soft click’ hard keys with mechanical and acoustic feedback.
  • Special function keys with additional perceptible marks. Two programmable ‘User Define’ keys.
  • Back-Lit keys. (Freeze only.)

Electric Power

  • AC Adapter (LBAC-66): Voltage:100-240 Vac. Frequency: 50/60 Hz. Power Consumption: 120W max. Current: 1.2 Ampere (max.)
  • AC Adapter (GE-90W): Voltage:100-240 Vac. Frequency: 50/60 Hz. Power Consumption: 108W max. Current: 1.08 Ampere (max.)


  • High-performance TFT LCD. 10.4" display.
  • Opening angle adjustment: 160°. (maximum)
  • Standby function with a pre-selectable timer for protection.

Transducer Types

  • Electronic Convex Array.
  • Electronic Micro-convex Array.
  • Electronic Linear Array.
  • Endocavitary Electronic Micro-convex.


  • Standard CINE Memory.
  • Opening angle adjustment: 160°. (maximum)
  • Automatic Optimization (Auto Tissue Optimization, Auto Spectrum Optimization and Auto Color Optimization).
  • ACE.
  • Built-in patient archive with images, patient information.
  • Auto Doppler Calculation.
  • Cardiac Calculations.
  • OB Calculations.
  • Fetal Trending.
  • Multi gestational Calculations.
  • Gynecological Calculations.
  • Urological Calculations.
  • Renal Calculations.
