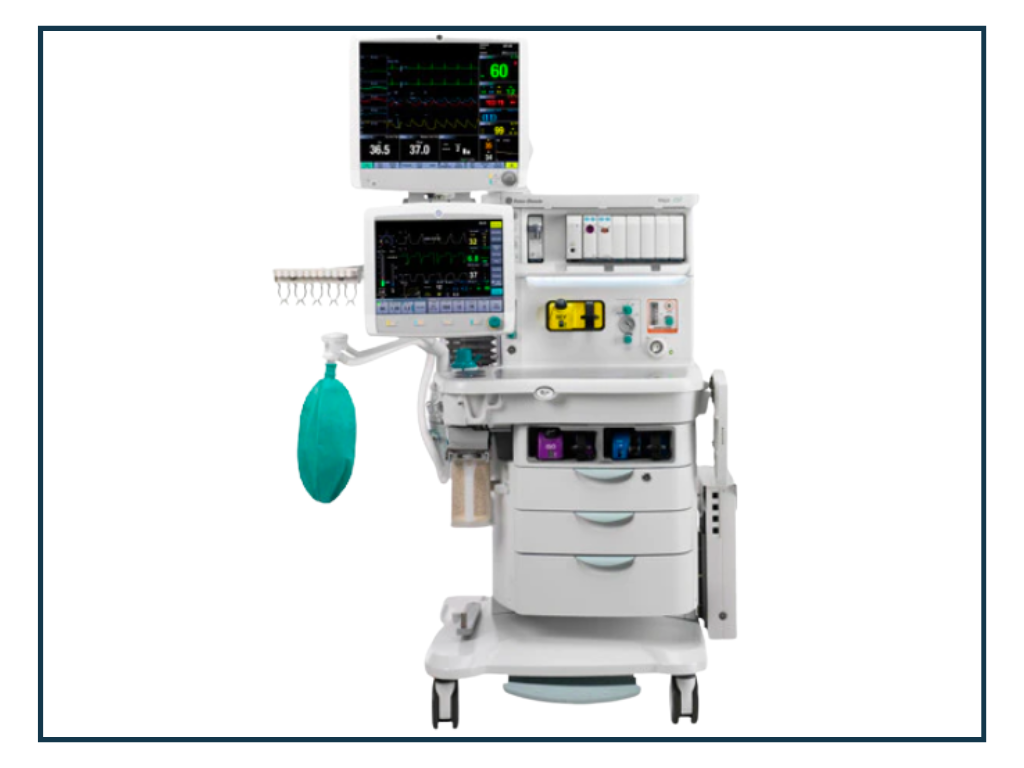

GE Aisys CS2 Anesthesia Carestation [Refurbished]


Price:
Sale price$20,110.00

Description

The GE Aisys CS 2 features a movable 15-inch touch ventilator display screen for a unified CARESCAPE-inspired user experience. With timesaving quick pick choices, flat menus and tunnelling alarms, the Aisys CS2 can help you deliver precise care with a personal touch every day. Electronic agent control helps provide exceptional benefits, such as automatic record keeping of set agent concentrations and agent usage calculations.

Aisys CS 2 Specifications:

General

Dimensions

  • Overall: 52.7 in (133.9 cm) H x 28.92 in (73.45 cm) W x 34.8 in (88.4 cm) D
  • Top Shelf: 21.66 in (54.8 cm) W x 17.5 in (44.45 cm) D
  • Work Surface: 365.5 in² (2358.1 cm²)
  • Drawers (small): 4.13 in (10.5 cm) H x 14.88 in (37.8 cm) W x 14.82 in (37.64 cm) D
  • Casters Diameter: 5 in (12.5 cm)
  • Overall Weight: 370 lbs (168 kg)
  • Top Shelf Weight Limit: 100 lbs (46 kg)
  • Work Surface Height: 34.71 in (88.17 cm)
  • Drawers (large): 5.91 in (15 cm) H x 14.88 in (37.8 cm) W x 14.82 in (37.64 cm)

Aisys Ventilation Modes

  • Standard: Volume control mode with tidal volume compensation
  • Optional: Pressure Control and PCV-VG, SIMV, PSVPro
  • Notification of spontaneous breathing: Patient-generated breaths will change pressure and flow waveform color for immediate clinician notification

7900 Smartvent Parameters

  • Tidal volume range: 20 to 1500 mL (Volume control and SIMV modes)
  • Incremental settings: 20 to 50 mL (increments of 1 mL), 50 to 100 mL (increments of 5 mL), 100 to 300 mL (increments of 10 mL), 30 to 1000 mL (increments for 25 mL), 1000 to 1500 mL (increments of 50 mL)
  • Minute volume range: 0 to 99.9 L/min
  • Pressure (P) Inspired range: 5 to 60 cm H2O (increments of 1 cm H2O), 5 to 1500 mL volume delivery
  • Pressure (P) max range: 12 to 100 cm H2O (increments of 1 cm H2O)
  • Pressure (P) support range: Off, 2 to 40 cm H2O (increments of 1 cm H2O)
  • Rate: 4 to 100 breaths per minute for Volume Control and Pressure Control; 2 to 60 breaths per minute for SIMV, PSVPro and SIMV-PC+PSV (increments of 1 breath per minute)
  • Inspiratory/expiratory ratio: 2:1 to 1:8 (increments of 0.5)
  • Inspiratory time: 0.2 to 5.0 seconds (increments of 0.1 seconds) (SIMV and PSVPro)
  • Trigger window: 0 to 80% (increments of 5%)
  • Flow trigger: 1 to 10 L/min (increments of 0.5 L/min), 0.2 to 1 L/min (increments of 0.2 L/min)
  • Inspiration termination level: 5 to 75% (increments of 5%) - Rise Rate 1-10 (PCV, PCV-VG, PSV, SIMV and PCPro)

Features:

  • eco flow provides information that may help clinicians maintain their desired inspired oxygen concentration.
  • During low and minimum flow anesthesia, ecoFLOW displays agent consumption data that can help mitigate wasteful overdelivery of fresh gas flow.
  • Using fewer agents means spending less money, which can positively impact your bottom line and the environment when waste gases are reduced.

** All used goods are reconditioned by Tomlin Medical Pty Ltd. Used goods are not endorsed or supplied by their original manufacturer and are not subject to any manufacturer warranty. All used goods are subject to the limited warranty provided by Tomlin Medical Pty Ltd.**
