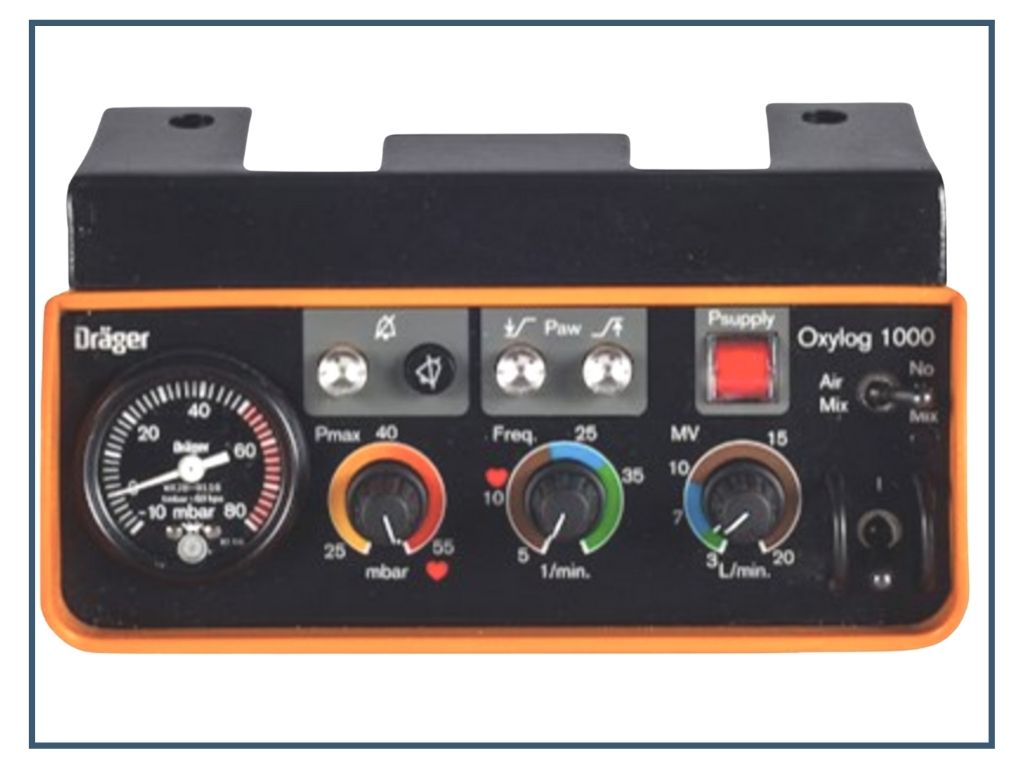

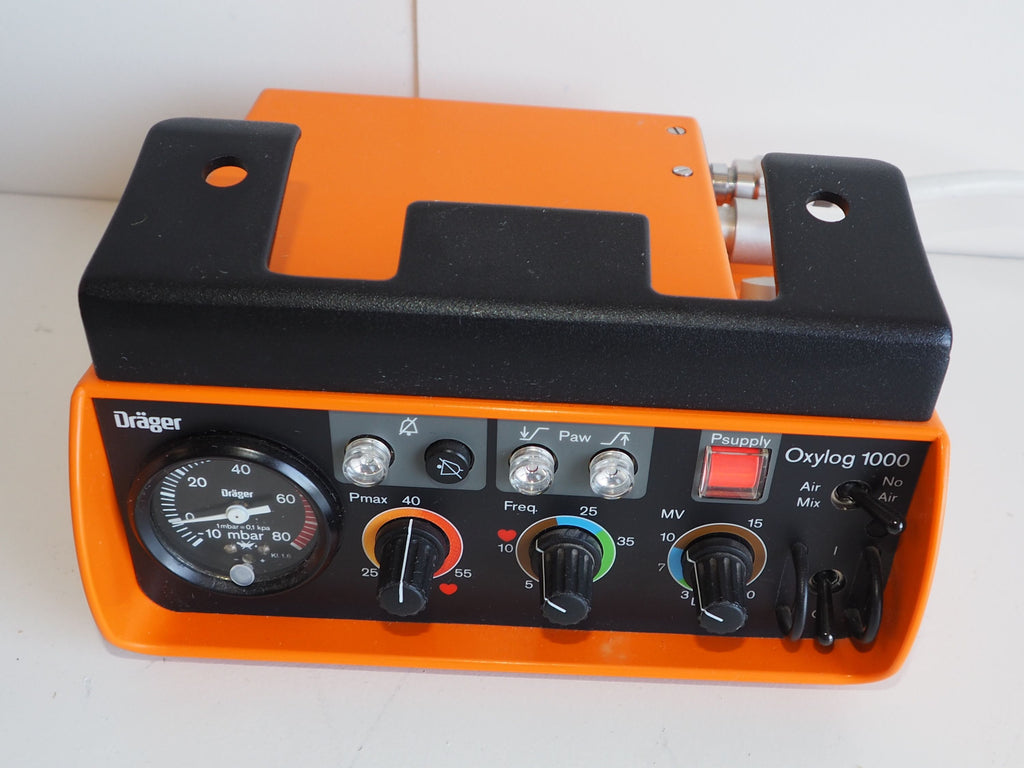

Drager Oxylog 1000 [Refurbished]


Price:
Sale price$1,692.00

Description

The Drager Oxylog 1000 offers first aid ventilation of patients in emergency situations. Designed to be used outdoors, its intuitive operation, robustness and transportability make the Drager Oxylog 1000 complete in its class. The ventilator has integrated audible and visual alarms that monitor both the airway pressure and supply pressure to aid in patient safety. All functions are pneumatically operated, so the ventilator does not depend on any electrical power source. Thanks to its fundamental design, the Oxylog 1000 also stands for great reliability, ready to meet rough conditions during your mission.

Drager Oxylog 1000 Specifications:

General

  • Brand: Drager Oxylog
  • Model: 1000
  • Category: Ventilator
  • Dimensions (W x H x D): 215 x 90 x 215 mm / 8.5 x 3.5 x 8.5 inches (excl. handle)
  • Weight: 3.15 kg / 7.3 lbs
  • Ventilation frequency, smoothly variable: 4 to 54 1/min
  • Minute volume, smoothly variable: 3 to 20 L/min

Ambient Conditions

  • Temperature range: –18 °C to +50 °C / 0 to 122 °F
  • Relative humidity: 15% to 95% rel humidity
  • Atmospheric pressure During Operation: 700 to 1100 h Pa
  • Relative humidity During Operation: 15% to 95%
  • Vibration tested: In acc.with MIL STD 810 F, methode 514.5
  • Airworthiness: In accordance with RTCA DO-160 D, section 8

Performance

  • I:E Ratio: 1 :1.5
  • Minute volume: 3 to 20 L/min (smoothly variable)
  • PEEP Ventilation: With optional PEEP valve
  • Principle of operation: Flow Chopper
  • Control: Time-cycled, Volume-constant

Alarm

  • Airway Pressure:
    • Max: 25 to 60 mbar / cm H₂O (Smoothly Variable
    • Paw high: Actual value exceeds set value (Pmax)
    • Paw low: A pressure of 10 mbar/cm H₂O is not exceeded during inspiration
  • Supply pressure low (Psupply)
  • Supply pressure drops below 2.7 bar / 40 psi

Additional Details

  • Supply pressure: 2.7 to 6 bar / 40 to 88 psi at 60 L/min
  • Gas consumption for internal control: Approx 1.0 L/min
  • Classification: Class IIb according to EC Directive 93/42/EEC
  • UMDNS-Code: 18-098
  • Switch to Air Mix: Approx 60% by vol. O2
  • Switch to No Air Mix: 100% by vol. O₂
  • Dead space volume: Approx 12 ml
  • Device Compliance: Approx. 1 mL/mbar / cm H₂O
  • Safety valve opening pressure: 80 mbar/cm H₂O
  • Pressure Gauge Display: -10 to +80 mbar/cm H₂O

Features:

  • Compact portable unit
  • Runs off high pressure oxygen
  • Bottle or wall outlet
  • Hose and reusable circuit supplied
  • In excellent condition
  • Ideal for small animals
  • Tick and snake bite ventilator
  • Integrated audible and visual alarms
  • Robustness and transportability
  • All functions are pneumatically operated
