Drager Evita 4 [Refurbished]

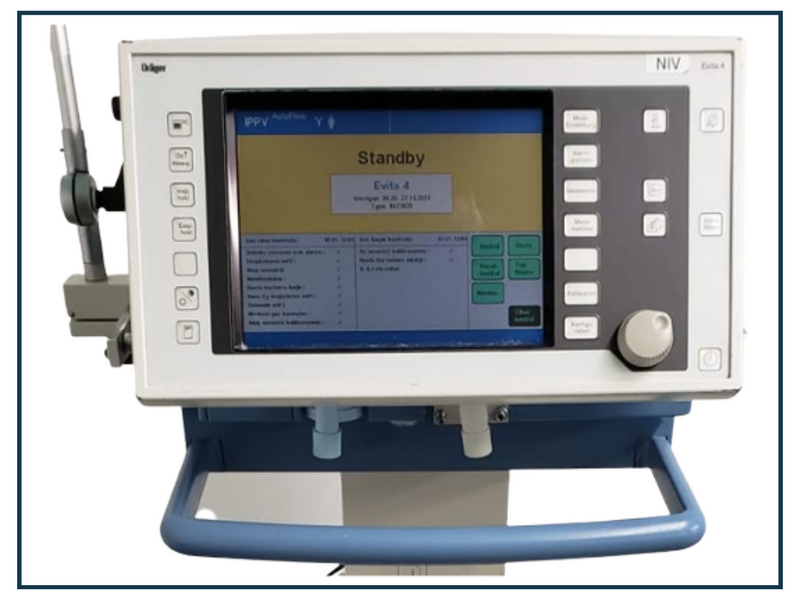

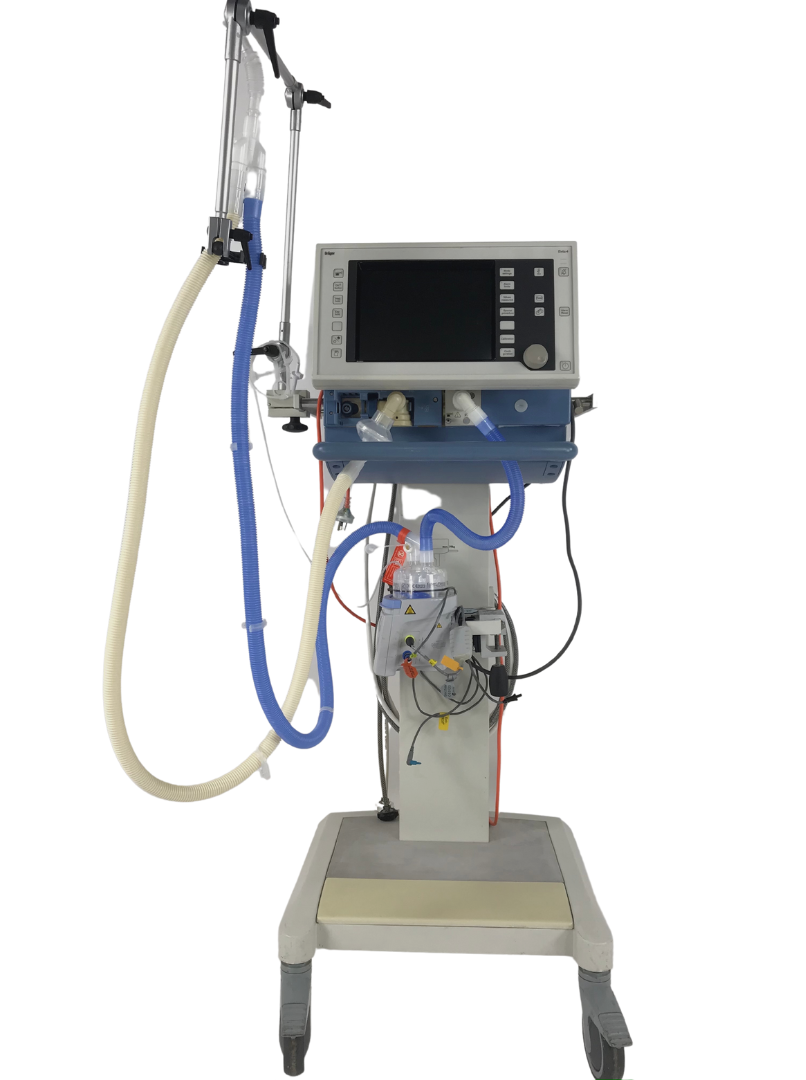

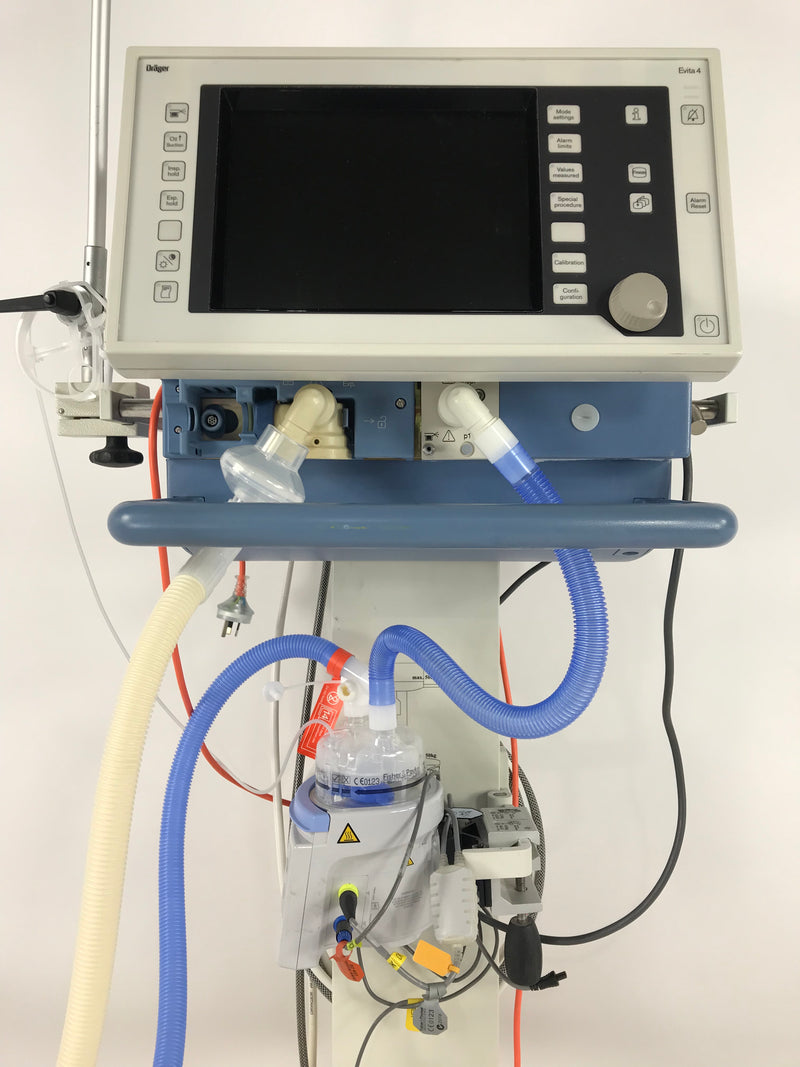

The Drager Evita 4 is a ventilator used on Adults, pediatrics, and Neonates. This ventilator can also be used on premature babies utilizing the NeoFlow option. It's a time-cycled, constant-volume long-term ventilator. It was designed to meet the demanding requirements of the ICU environment by improving the interactions between the patient, ventilator and clinician. It has a functional touch screen that continually provides the clinician information on ventilator settings, patient measurements and advanced trending capabilities, enhancing the device's operation.

Drager Evita 4 Specifications:

• Brand: Drager
• Model: Evita 4
• Category: Ventilators
• Inspiratory Time: 0.1 sec
• Weight: 60 Kg
• Size: 11.4 x 20.9 x 17.7 in (HxWxD)
• Tidal Volume: 3-2,000 w/NeoFlow
• Limit: 0-80 cm h2o
• Inspiratory Flow: 6 l/min
• Ventilation Modes: Intermittent Positive Pressure Ventilation, Mandatory Minute Volume Ventilation, Spontaneous Breathing

Display

• Type: Color TFT Color Display
• Size: 6.5" (diagonal)

Ventilation Modes

• CMV (Continuous Mandatory)
• SIMV (Synchronized Intermittent Mandatory Ventilation)
• MMV (Mandatory Minute Volume Ventilation)
• CPAP (Continuous Positive Airway Pressure)
• PS (Pressure Support)
• PCV+ (Pressure-Controlled Ventilation plus)
• Airway Pressure Release Ventilation)

Special Modes

• Apnea Ventilation
• ILV (Independent Lung Ventilation)

Measured Values Displayed

• Airway pressure: Peak pressure, plateau pressure, mean pressure, PEEP, min. pressure (0 to 99 mbar/cmH2O)
• Minute volume (MV), (BTPS): MV, MVspont, MVleak (0 to 99 L/min)
• Tidal volume (VT), (BTPS): Inspired VT, expired VT, VTASB (VTPS) (0 to 3999 mL)
• Breathing frequency (f): ftotal, fspon, fmand. (0 to 300/bpm)
• O2 concentration: (FiO2) Inspired O2 concentration (15 to 100 Vol.%)
• Lung mechanics
• Resistance ((0.0 to 600 mbar/L/s)(cmH2O/L/s)Compliance ((0.0 to 300 mL/mbar)(mL/cmH2O)
• Breathing gas temperature: 18°to 51°C
• Waveforms: Airway pressure-time, flow-time, volume-time, ...
• Trends (optional): FiO2, MV, VT, f, PEEPi, R, C, etCO2, ...
• Loops (optional): Paw-V, V-Flow, Flow-Paw, ...
• Capnography (etCO2) (optional): 0 to 100 mmHg
• CO2 production (VCO2): 0 to 999 mL/min, STPD
• Serial dead space Vds: 0 to 999 mL, BTPS
• Dead space ventilation (Vds/VT): 0 to 99%
• O2 saturation: SpO2, pulse

User Interface

• Instructions: Detailed voice prompts and visual icons guide the responder through the use of the defibrillator
• CPR coaching: Voice coaching for adult and infant/child CPR provides instructions and audio cues for the appropriate number, rate and depth of chest compressions, as well as for each breath
• Controls: Green On/Off button, blue i-button, orange Shock button, optional Infant/Child key
• Indicators: Ready light, blue i-button, caution light, illuminated pads, icons, Shock button lights up when the shock is advised

Data Recording and Transmission

• Infrared: Wireless transmission of event data to a Smartphone or PC, using the IrDA protocol
• HeartStart Event Review Data management software (optional) for download and review of Software: data retrieved through the defibrillator’s infrared data port
• Data stored: First 15 minutes of ECG and the entire incident’s events and analysis decisions
