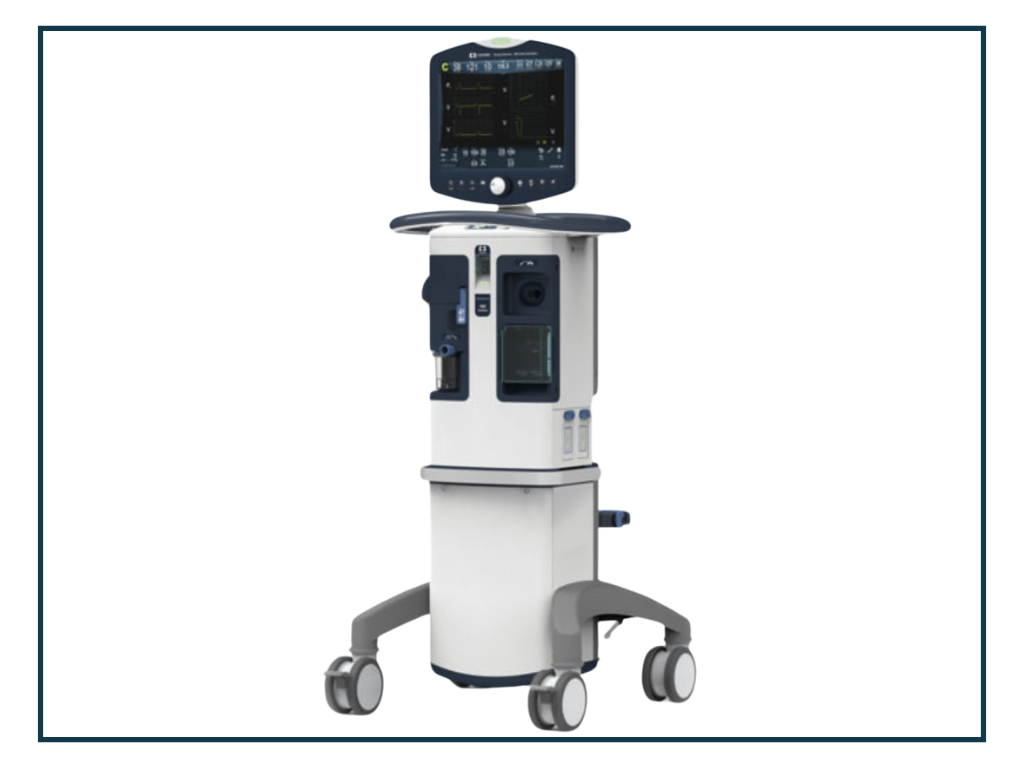

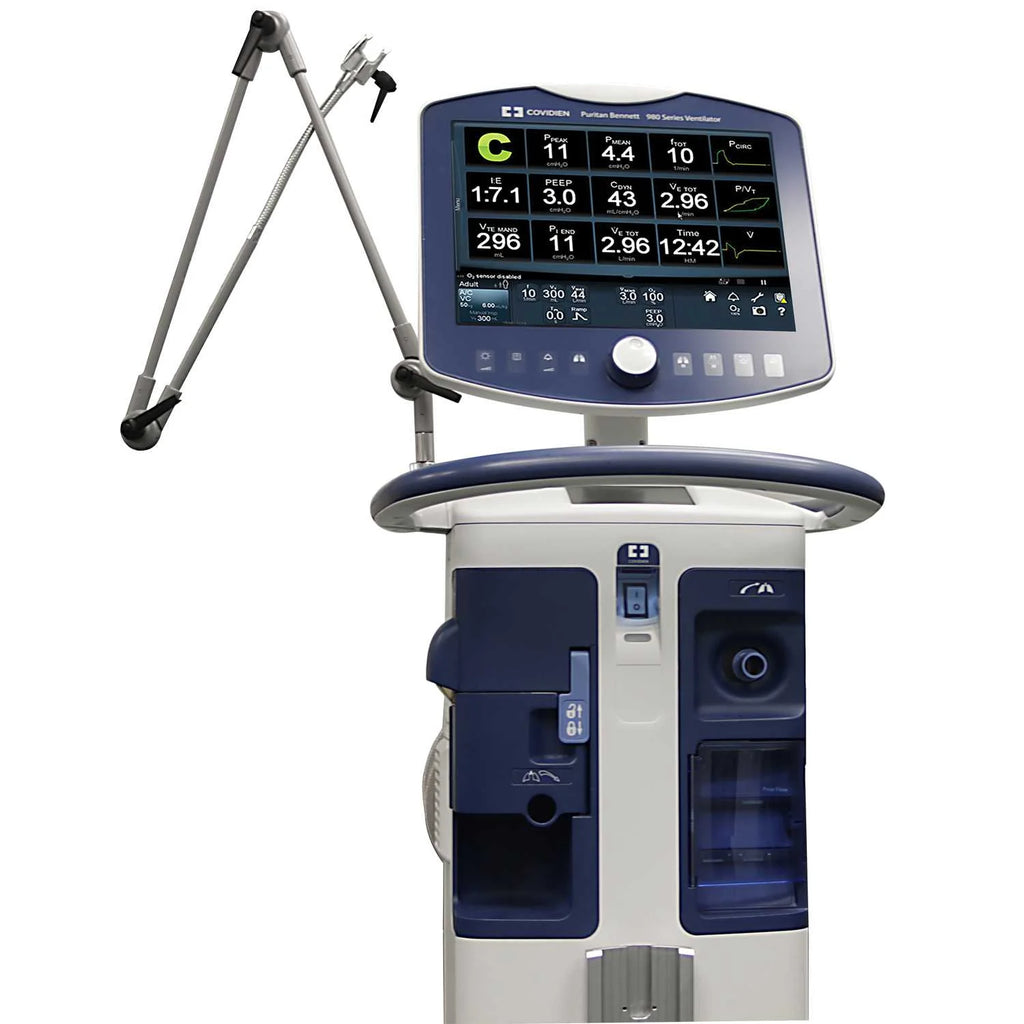

Nellcor Puritan Bennett 980 Ventilator System [Refurbished]

The Puritan Bennett 980 is an advanced, full-featured respiratory ventilator designed to help patients breathe safely and comfortably. Using the ventilator’s unique capabilities, clinicians can synchronize the Puritan Bennett 980 with patient needs for a comprehensive, efficient caregiving strategy.

Specifications:

• Brand: Nellcor Puritan Bennett
• Model: Puritan Bennett 980
• Category: Ventilator
• Tidal Volume: 2 to 315 mL
• Ventilation Mode: (A/C), (SIMV), SPONT), BiLevel, (CPAP)
• Respiratory Rate: 1.0 1/min to 150 1/mi
• Rise Time: 1% to 100%
• Flow Pattern: Square or descending ramp
• Altitude: Operation: -411.5 m to 3048 m (-1,350 ft to 10,000 ft), Storage: 6,096 m max (20,000 ft max)
• Pendant Base Dimensions: 12.5 x 11.5 x 43.5 inch (32 x 30 x 109.22 cm)
• Pendant Base Weight: 76 lbs (34.5 kg) including BDU, GUI and primary battery; 60 lbs (27.2 kg) for BDU only
• Operating Temperature: 10°C to 40°C (50°F to 104°F)
• Display Size: 15 inch (38.1 cm)
• Display Type: Rotates 170° and tilts up to 45° from vertical
• Weight: 113 lbs (51.26 kg) including BDU and standard base; 69 lbs (31.3 kg) for GUI and primary battery BDU only
• Apnea Ventilation Mandatory Type: PC, VC, Neonatal default: PC
• Apnea Flow Pattern: Square or descending ramp
• Apnea Peak Inspiratory Flow (VMAX): 1.0 L/min to 30 L/min
• Apnea Tidal Volume: 3 mL to 315 mL
• Apnea Inspiratory Pressure: 5 cmH2O to 90–PEEP cmH2O
• Apnea Interval: 10 to 60 seconds or Off in CPAP, Neonatal default: 10 seconds
• Apnea Respiratory Rate: 2.0 1/min to 40 1/min, Neonatal default: 20 1/min
• Apnea O2%: 21% to 100% O2, Neonatal default: 40%
• Apnea I:E Ratio: ≤1.00:1
• Apnea Expiratory Time: 0.20 to 59.8 sec
• Disconnect Sensitivity: 1 L/min to 15 L/min, Neonatal default: 2 L/min for INV, 5 L/min in NIV
• Humidification Type: Heat-moisture exchanged (HME),Non-heated expiratory tube, heated expiratory tube
• Humidifier Volume: 100 mL to 1,000 mL
• Proximal Exhaled Tidal Volume: 0 mL to 500 mL
• Proximal Inspired Tidal Volume: 0 mL to 500 mL
• Inspiratory leak volume & Percentage: 0 mL to 9,000 mL, 0% to 100%
• Dynamic Resistance: 0 cmH2O/L/s to 100 cm22O/L/s
• Dynamic Compliance: 0 mL/cmH2O to 200 mL/cmH2O
• Inspiratory compliance: 0 to 1.00
• Apnea interval: 10 to 60 seconds or Off in CPAP, Neonatal default: 10 seconds
• Pressure Support: 0 to 70 cm H2O
• PEEP/interm. PEEP: 0 to 45 cmH2O
• Inspiratory Pressure Limit: 5 cmH2O to 90 cmH2O
• FiO2%: 21% to 100%
• Alarms: Exhaled tidal volume Low/high, Exhaled minute volume Low/high, inspired tidal volume High, Respiratory rate High, Circuit pressure Low/high
• Dimensions: 12.5 x 11.5 x 58 inch (32 x 30 x 148 cm ), including GUI screen
• Relative Humidity: 10% to 95% non-condensing
• Storage Temperature/ Humidity: 20°C to 70°C (-68°F to 158°F), 10% to 95% non-condensing
• Atmospheric Pressure: Operation: 70 kPa to 106 kPa (10.15 psi to 15.37 psi), Storage: 50 kPa to 106 kPa (7.25 psi to 15.37 psi)
• Sound Pressure Level: At a distance of 1 m, does not exceed 48 dBA at 5 L/min
• Plateau Time: 0.0 to 2.0 seconds
• Sensitivity: Expiratory sensitivity: 1% to 80%, Flow sensitivity: 0.1 L/min to 10 L/min, Neonatal default: 0.5 L/min
• I:E Ratio: 1:299 to 149:1
• Minimum expiratory time: ≥ 0.20 sec
