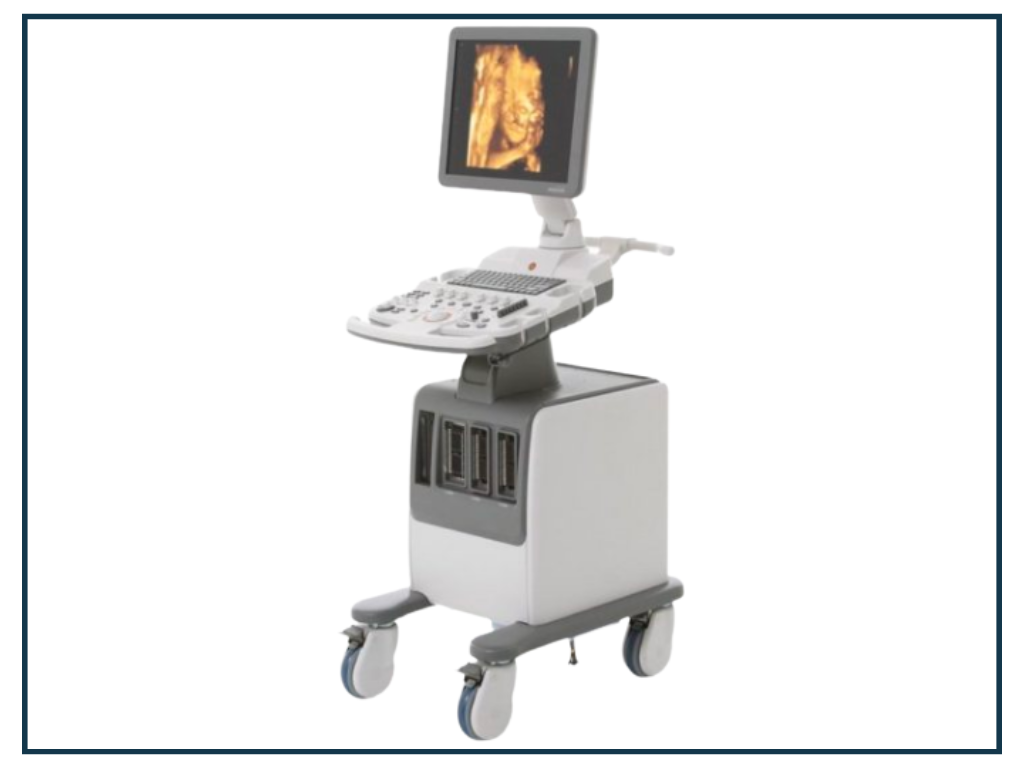

Samsung Sonoace R7 (With 1 Transducer) [Refurbished]


Price:
Sale price$8,444.00

Description

The Samsung R7 was launched in 2011 as the Medison SonoAce R7. When Samsung purchased Medison later that year it continued developing the R7 and continues to produce it to this day, albeit in an improved form. The Samsung R7 is a reasonably priced diagnostic ultrasound system focused on women’s health applications. It features good 4D performance for the price. The SonoAce R7 was designed on the same platform as the SonoAce R5, but there are stark differences. Not only is the image quality much better than the R5, in 2D it also offers great 4D performance which is not available on the R5. The Samsung R7 also offers several midrange features such as the 19” monitor and Elastography that are not typically found on economy-priced ultrasound machines.

Samsung Sonoace R7 Specifications:

General

  • Brand: Samsung
  • Model: R7
  • Category: Ultrasound Equipment
  • Digital Beam-forming
  • System processing channel: 114,688
  • Displayed Imaging Depth (Probe dependent)
  • Minimum Depth of field: 2cm
  • Maximum Depth of Field: 30cm
  • 200dB System Internal Dynamic Range
  • Maximum Frame Rate: 753Hz (Probe, mode dependent)
  • Maximum Color Frame Rate: 211Hz (Probe, mode dependent)
  • PW Velocity Range: 5cm/s ~ 6.81m/s
  • CW Velocity Range: 19.25cm/s ~ 8.27m/s

Dimensions & Weight

  • Height: 1,380mm (with monitor)
  • Width: 450mm
  • Depth: 700mm
  • Weight: 62kg (with monitor)
  • Weight: Approx. 75kg (with Safe Working Load)

Electrical Power

  • Frequency: 50/60 Hz
  • Voltage: 100-120V/200 -240VAC, 680VA
  • Thermal output: 1740 [BTU/h]
  • Safety Class(EMI): Class A
  • System Noise: under 60 dB

 ** All used goods are reconditioned by Tomlin Medical Pty Ltd. Used goods are not endorsed or supplied by their original manufacturer and are not subject to any manufacturer warranty. All used goods are subject to the limited warranty provided by Tomlin Medical Pty Ltd.**
