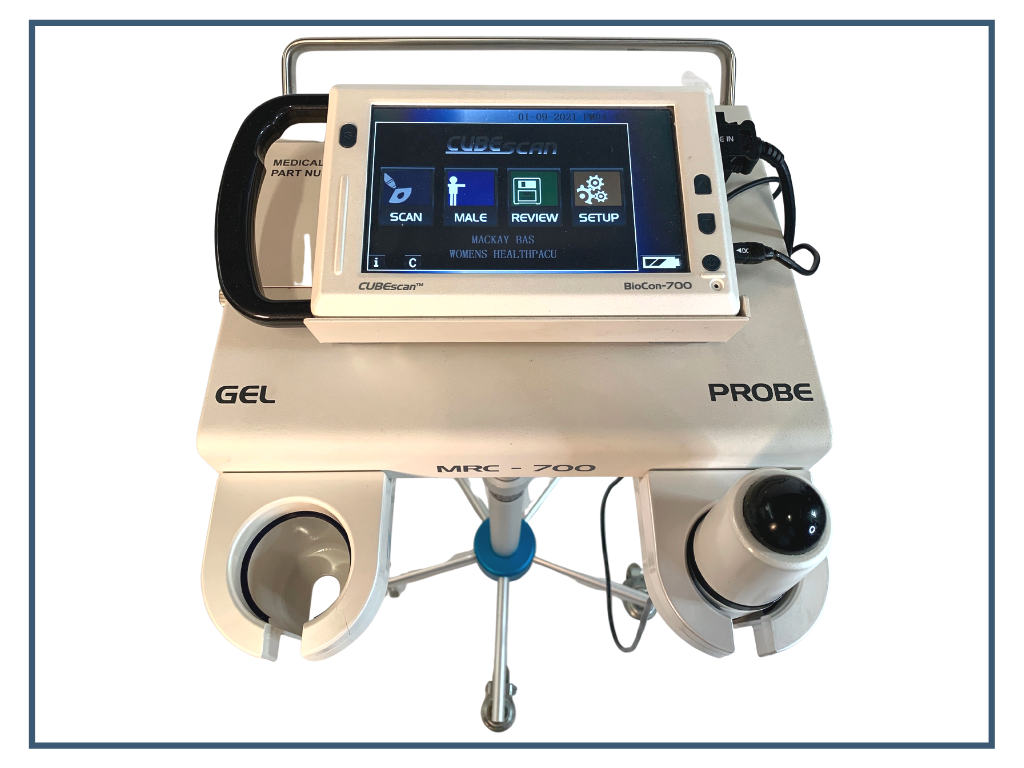

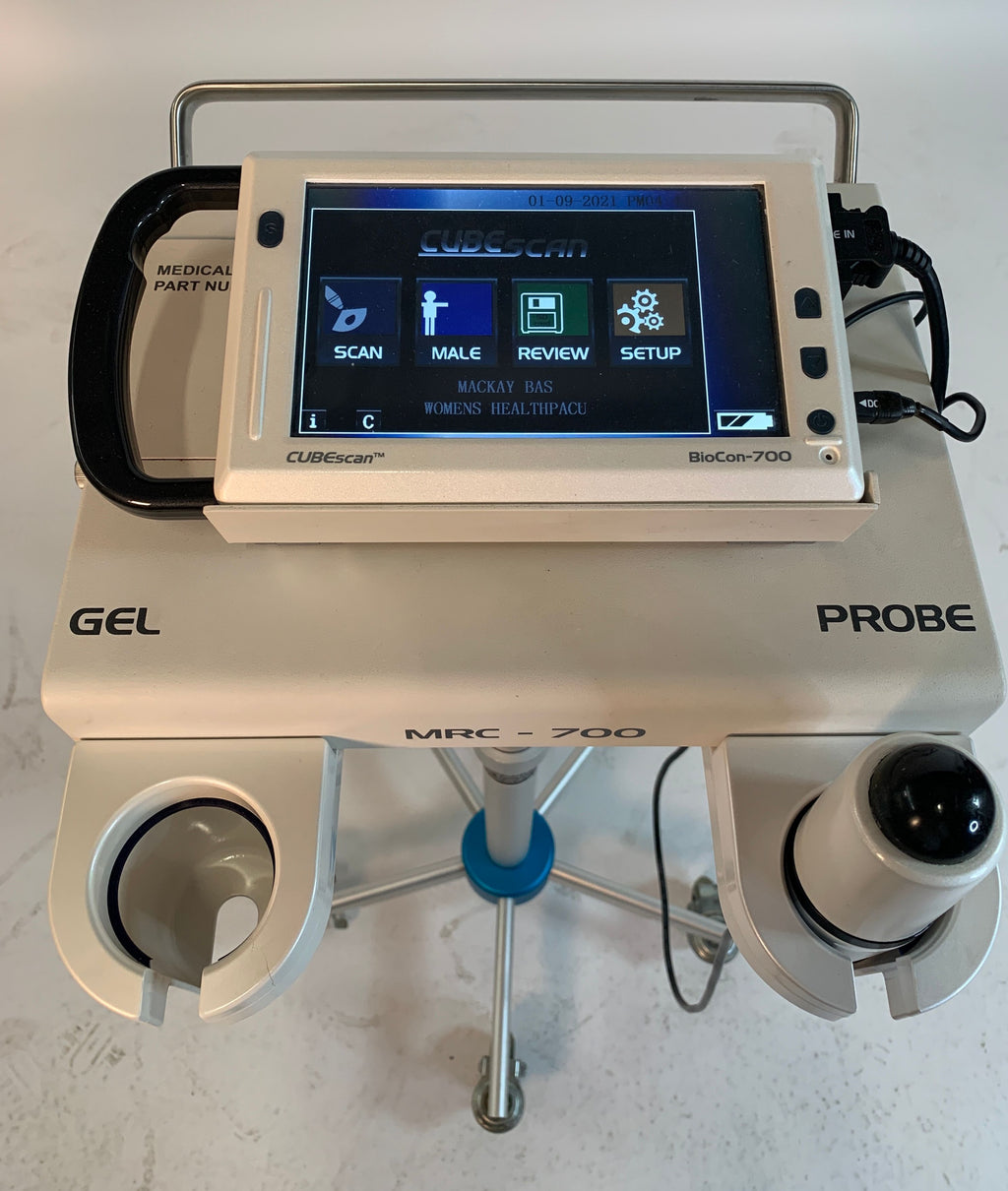

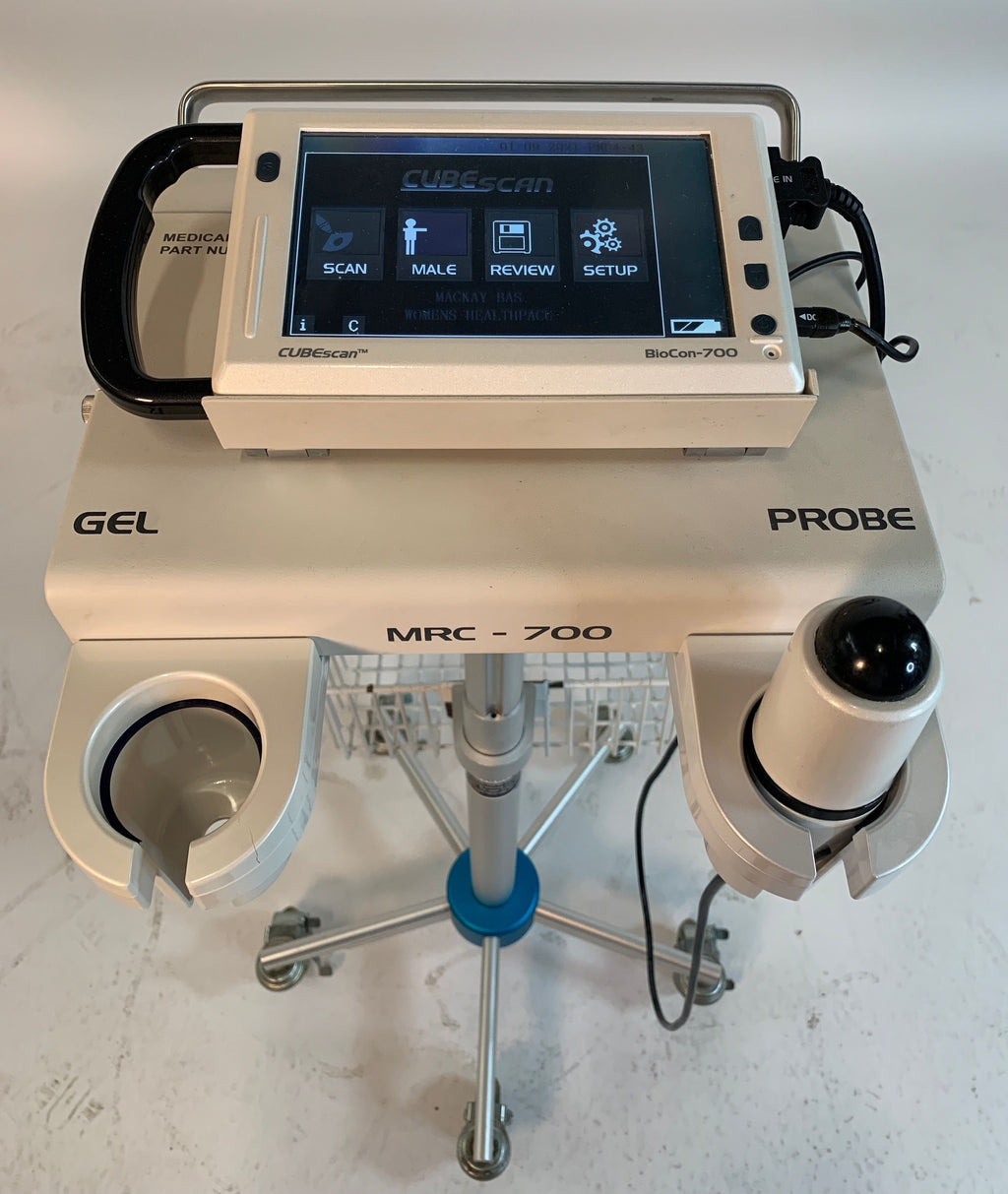

CUBEscan BioCon-700 is a portable ultrasound device intended to measure the urine volume in patient’s bladder. BioCon-700 transmits ultrasound signals into the abdomen of a patient and receives the echoed signals. Using the echoed signals, the system determines the bladder’s outline and calculates the bladder volume based on the outline.
A user can measure bladder volume quickly, easily and non-invasively with BioCon-700.
- Helps make a diagnosis of LUTS (Lower Urinary Tract Symptoms) by using urine volume or PVR (Post-Void Residual)
- Monitoring of POUR (Post-Operative Urinary Retention) or Post-operative dysuria
- Helps make a decision when to catheterize patient who may have urinary retention
- Prevents UTI (Urinary Tract Infection) by reducing unnecessary catheterization
- Monitoring of Anti-cholinergic drug side effect and prescribing drug dosage
- Supports to train urination and self-catheterization as an assistance tool
- Brand: Cubescan Biocon
- Model: Biocon 700
- Category: Ultrasound Equipment
- Display: 7″ TFT-LCD (WVGA), 16.7M colors (Color Touch Screen)
- Volume Range – 0~999ml, Accuracy: 15%,15ml(0-999ml)*1)
- Printer: Built-in (50mm width) thermal printer
- Ultrasound Probe: 3D Sector Scan, 2.6MHz ultrasound frequency, B-Mode Scan, Scan Angle: 120
- Power: 3A, 9V DC Adapter (Adapter Input: AC 100 ~ 240V 50/60Hz), 7.4V battery pack (Li-ion)
- Dimension: 66mm(L) x 202mm(W) x 130mm(H) (0.92Kg) Ultrasound Probe Parameter Maximum (ISPTA): 1mW/cm2, Maximum (ISPPA): 10W/cm2, Maximum MI(Mechanical Index): 0.9max, Transducer diameter: 10mm, Transducer Resonant Frequency: 2.6MHz.
- Bladder output range: Bladder volume range : 0 – 999ml
- External interface: USB 2.0 basic
- Printer: Built-in thermal printer (57mm width)
- External memory: 2G SD card
- Pre-scan function, available for accurate probe aiming and measuring bladder volume

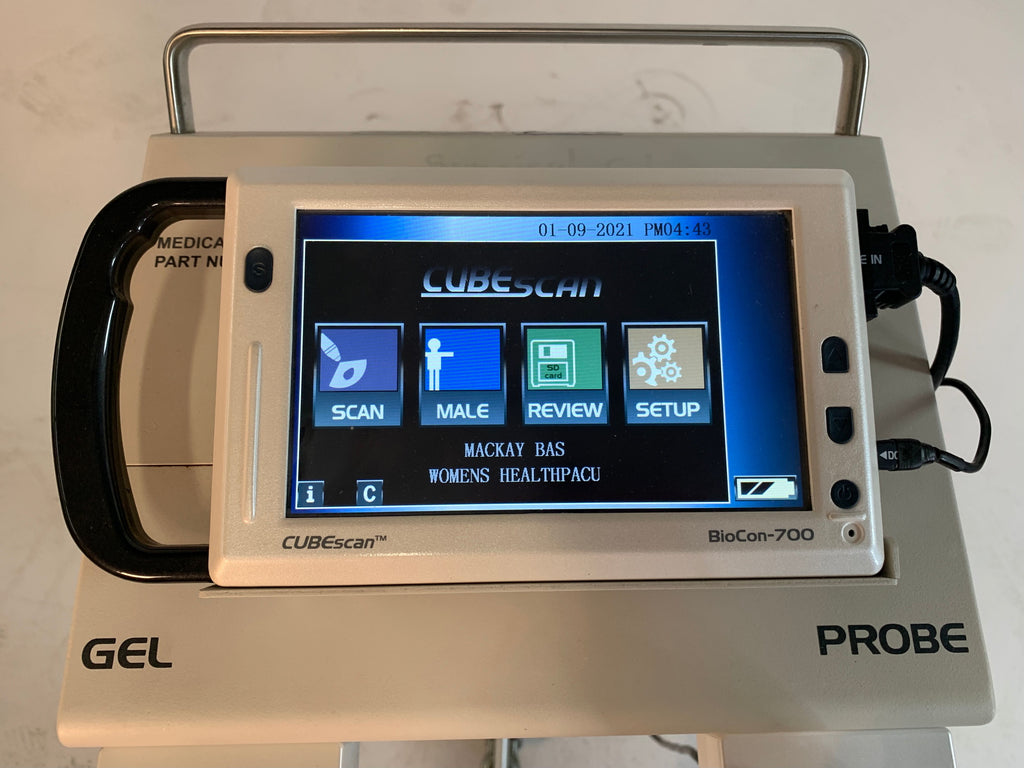

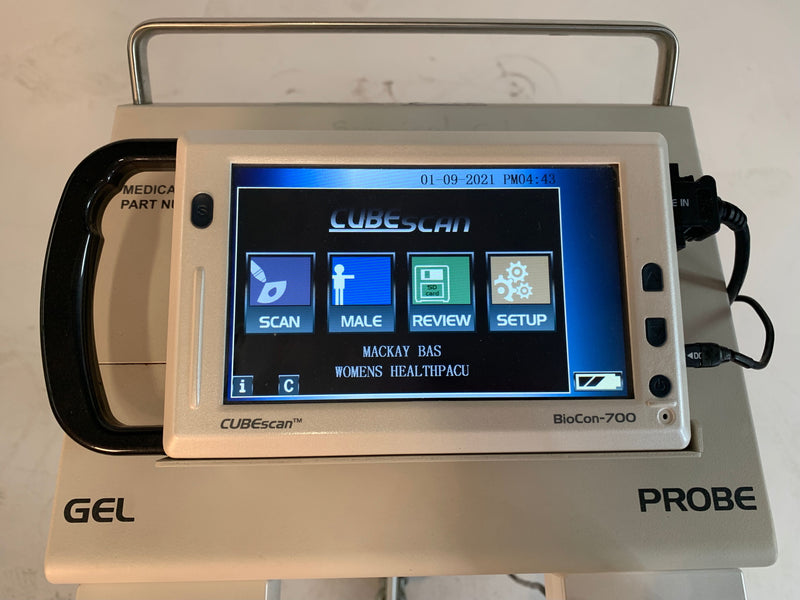

- 7-inch LCD touch screen, WVGA, 800x480 LCD display with convenient user interface
- Reliability of Data (Easy verification of scan results), provide 12 ultrasound images of scan results
- More convenient portability and mobility, easy to carry and move with rechargeable battery
- Built-in printer, makes it easier to manage patient’s data
- Data transmission to PC, EMR compatibility by transferring data to computer by USB cable
- 4G SD memory card, available to save over 4000 data
