Description

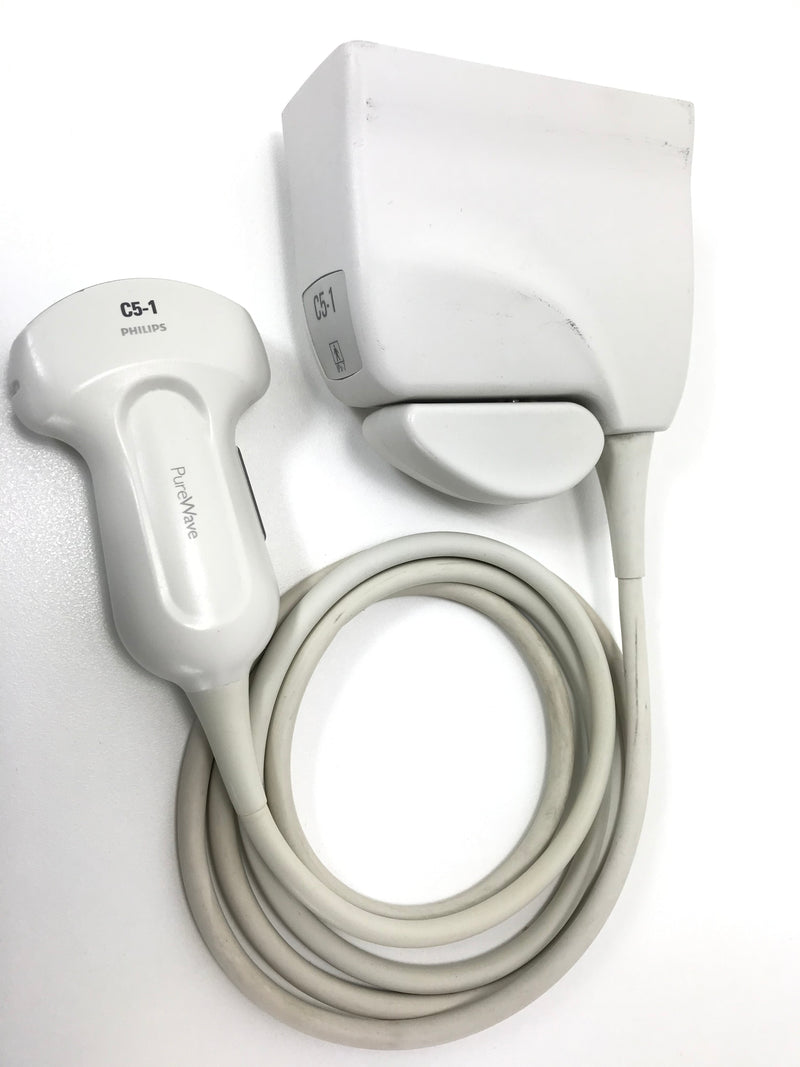

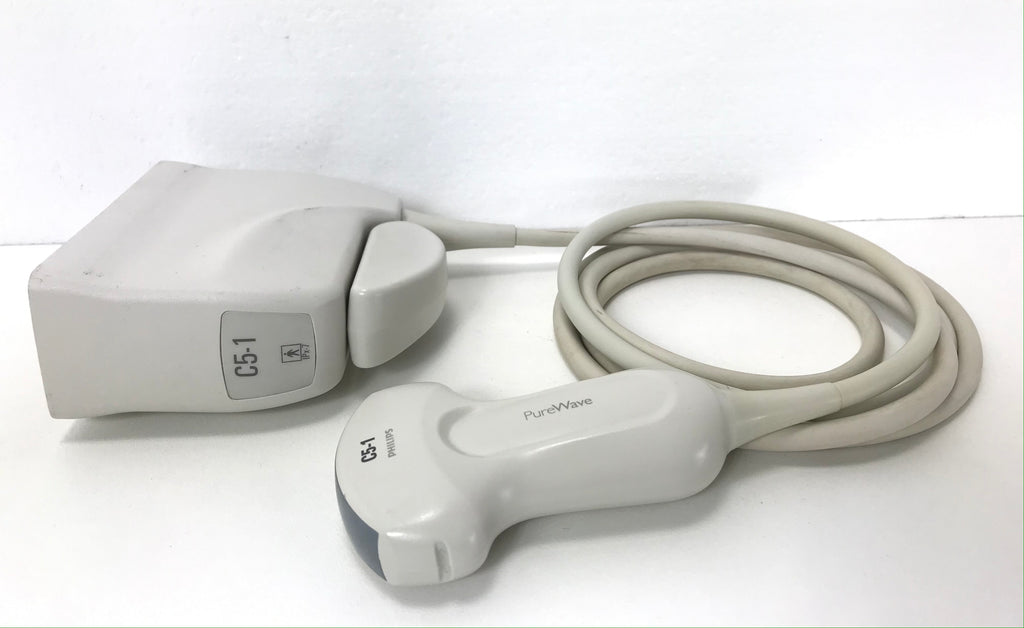

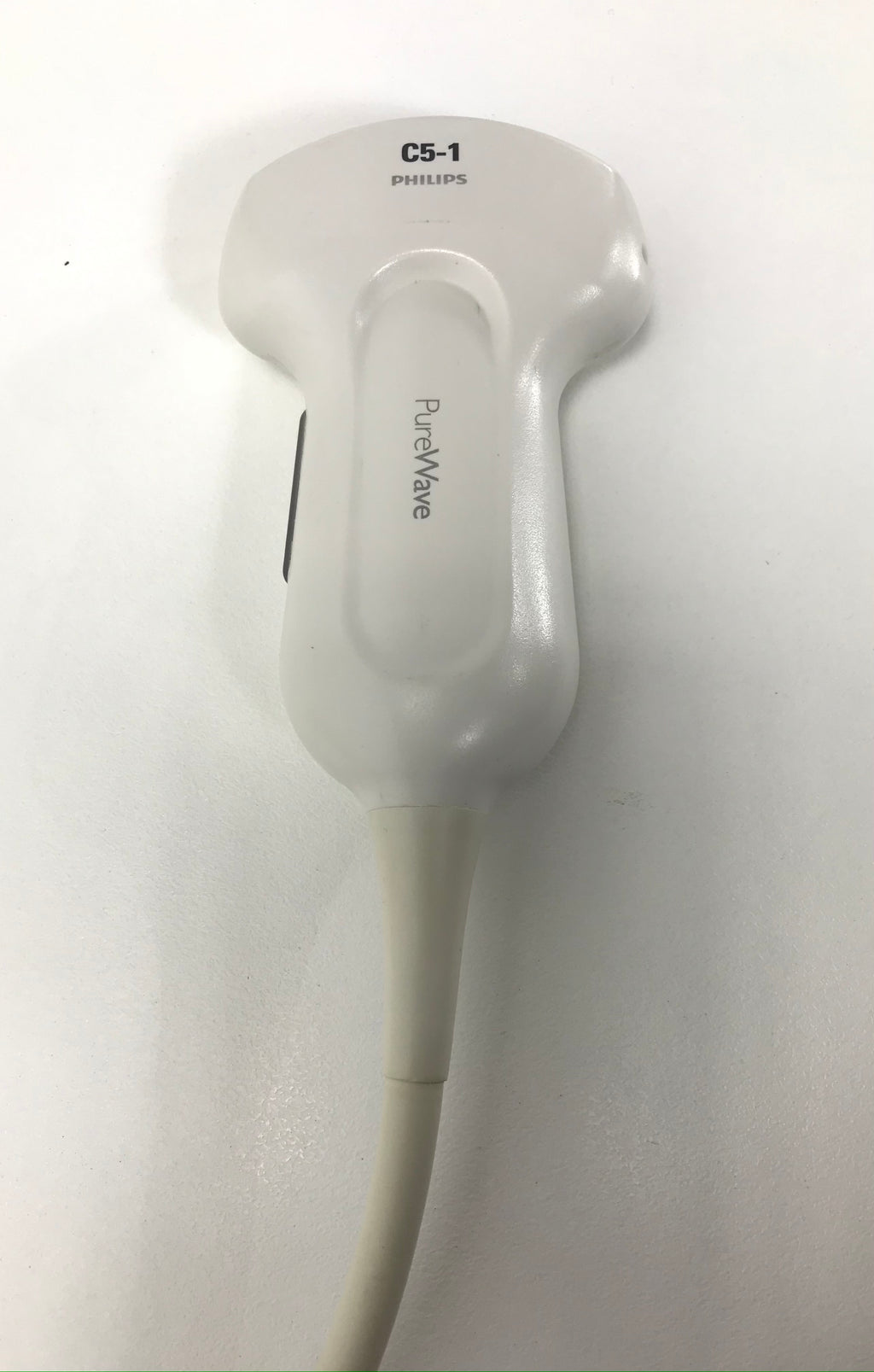

The used Philips C5-1 convex ultrasound transducer is compatible with Philips iU22 and CX50 ultrasound systems. The C5-1 probe can be utilized for fetal echo, abdominal vascular and renal applications. It features TSI for deep abdominal penetration, as well as advanced XRES.
Specifications:
- Brand: Philips
- Model: C5-1
- Category: Ultrasound Probe
- Technology: Broadband, PureWave
- Number of elements: 160
- Frequency range: 5 - 1 MHz
- Array Type: Curved
- Aperture: 55.5 mm
- Field of view: 111°
- Modes: 2D, steerable pulsed, High-PRF, and color Doppler, color power angio (CPA), directional CPA, SonoCT, variable XRES and multivariate harmonic imaging
- Applications: General purpose abdominal, obstetrical, gynecological, and interventional applications
- Biopsy capable: Yes
- Image Fusion Navigation capable: Yes
Features:
- 5 to 1 MHz extended operating frequency range
- Uses PureWave crystal technology for consistently excellent image quality even on technically difficult patients
- Steerable pulsed, High-PRF and color Doppler; and Color Power, Angio, SonoCT, advanced XRES, and multivariate harmonic imaging
- General-purpose abdominal, obstetrical, gynecological, and interventional applications
- Discreet TSI for deep abdominal, obstetrical, and gynecological penetration enables:
- Coded beam forming with chirp transmit and coded harmonics
- Tissue aberration correction
- Supports biopsy guide capabilities

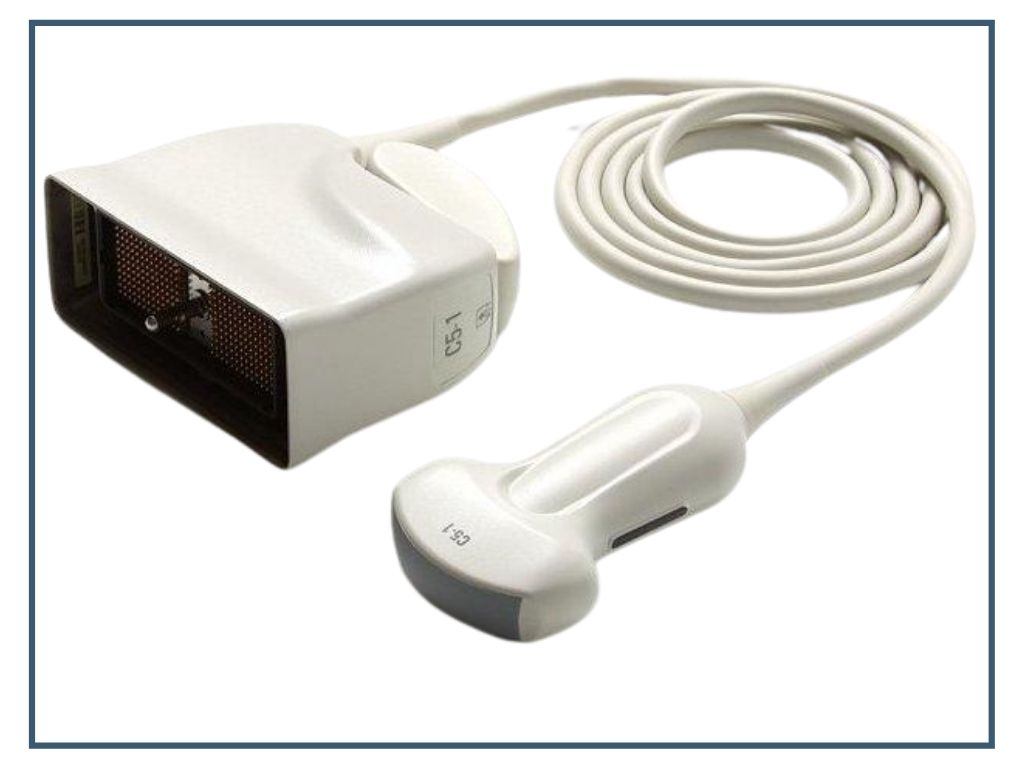

- The Philips C5-1 Broadband Curved Array Transducer is compatible with the Philips EPIQ 7, EPIQ 5, Affiniti 70, iU22, iE33, and HD15 Ultrasound System
