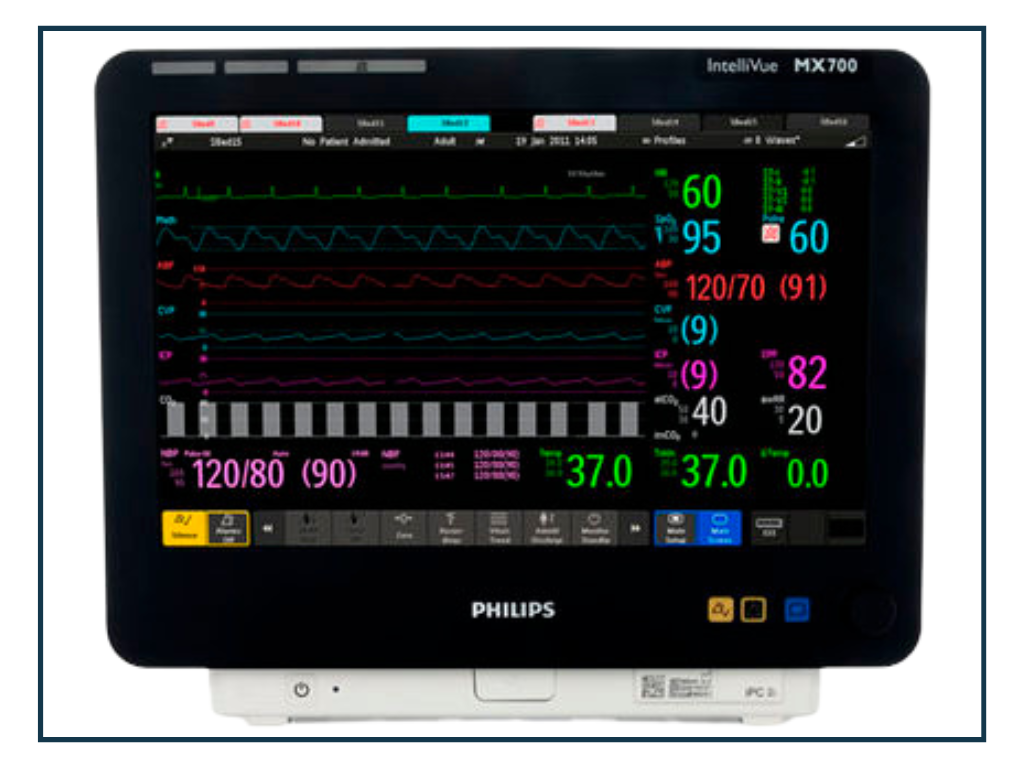

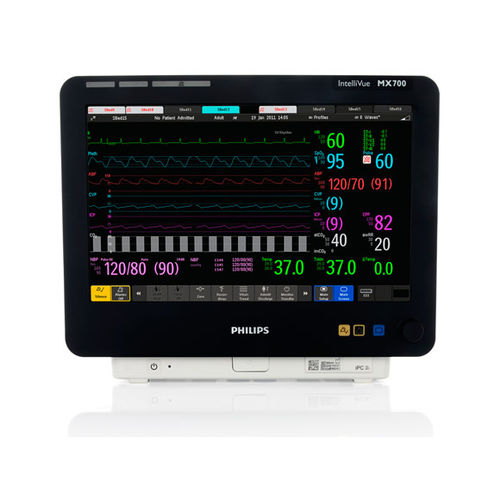

Philips IntelliVue MX700 [Refurbished]

The Philips IntelliVue MX700 is a bedside patient monitor that offers an expanded, real-time view of your patient's vital signs. It comes with an integrated PC (iPC) option bringing a host of clinically relevant information from your hospital's intranet and applications. The monitor can be connected to the Philips Multi-Measurement Module (MMS) as well as the IntelliVue gas analyzers to extend the functionality with plug-and-play convenience. There are also dedicated configurations available for anesthesia, Critical and cardiac, and neonatal care environments.

Philips IntelliVue MX700 Specifications:

General

• Brand: Philips
• Model: MX700
• Category: Patient Monitors
• Weight: 9.5 kg
• Dimensions: 15.43 x 12.63 x 6.41 in (WxHxD)

Operating and storage temperatures

• Temperature Range Operating: 0 to 40° C (32 to 100° F) with iPC installed: 0 to 35°C (32 to 95°F)
• Temperature Range Storage: -20 to 60° C (-4 to 140° F)
• Humidity Range Operating: 15 % to 95 % Relative Humidity (RH) (non condensing)
• Humidity Range Storage: 5 % to 95 % Relative Humidity (RH)
• Altitude Range Operating: -500 m to 3000 m (10000 ft)
• Altitude Range Storage: -500 m to 4600 m (15000 ft)

Display

• Size: 15 in
• Type: 389 mm active matrix color LCD (TFT)
• Resolution 1280 x 768
• Refresh rate 59.9 Hz
• Useful screen 334 x 200.45 mm
• Pixel size 0.261 x 0.261
• Resolution 1280 x 768
• Refresh rate 59.9 Hz
• Useful screen 334 x 200.45 mm
• Pixel size 0.261 x 0.261

Performance

• Power Consumption <200 W average
• Line Voltage 100 to 240 V
• Current 1.9 to 0.9 A
• Frequency 50/60 Hz

Sound

• Audible feedback for user input
• Prompt tone
• QRS tone, or SpO2 modulation tone
• 4 different alarm sounds Remote tone for alarms on other beds in network
• Tone for Timer expired

Network

• Standard 100-Base-TX (IEEE 802.3 Clause 25)
• Connector RJ45 (8 pin) Isolation basic
• insulation (reference voltage: 250 V; test voltage: 1500 V)

RS232 (Standard)

• Connector RJ45 (8-pin)
• Power none
• Isolation basic insulation (reference voltage: 250 V; test voltage: 1500 V)

USB Interface (4 Ports)

• Standard USB 2.0 full-speed (embedded host)
• Connector USB series “Standard A” receptacle.
• Power Low power port 4.4 V min; max. load for all ports together 500 mA.

Features:

• Offers a wide 15" touchscreen, and can also be operated by Navigation Point control and remote control
• Optional integrated PC provides immediate and seamless access to comprehensive patient information
• Highly configurable, widely scalable, and fully compatible with existing IntelliVue solutions
• Smooth surfaces and minimal seams help to support efforts in reducing the risk of cross-contamination.
