Description

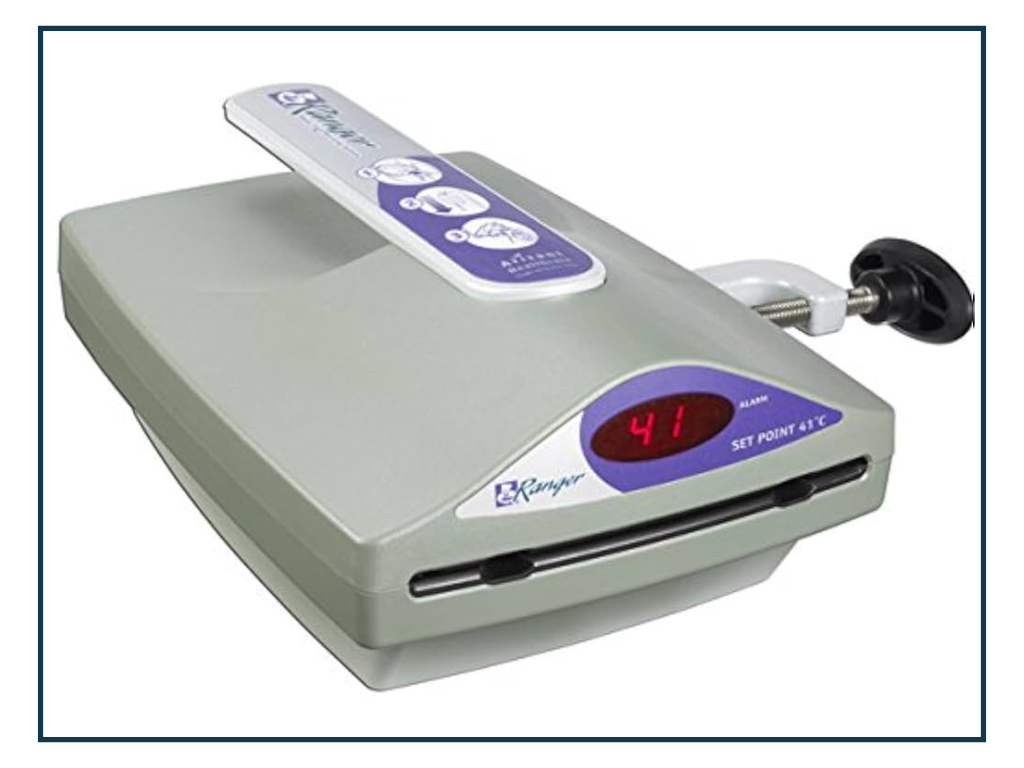

The Ranger blood/fluid warming system is designed to warm blood, blood products, and liquids and deliver these at flow rates from KVO to 500 mL/min. Plus, setup is intuitive; cleaning requires one tool and just minutes to complete. That’s the no-hassle Ranger system.
Specifications:
- Brand: 3M Ranger
- Model: 245
- Category: Fluid warmers
- Weight: 3.3 kg
- Dimensions: 19 x 11 x 25 cm (WxHxD)
- Temperature adjustment: 37° to 41°C with 0.5°C interval
- Set point temperature: 41°C
- Heating time: approx. 45 sec
- External service interface for PC
- Compact design with integrated handle for easy transport and built-in IV pole clamp for secure mounting on a standard rail and IV pole
- Large, easy-to-read temperature display
- Highly conductive aluminium plates
- Convenient over-temperature test function
- Flow Rates
- Pediatric KVO – 100 mL/min
- Standard Flow KVO – 150 mL/min
- High Flow KVO – 500 mL/min
- Audible/visible over-and under-temperature alerts
- Over-temperature primary setpoint: 43°C
- Over-temperature secondary setpoint: 44°C
- Hearing alarm frequency: 3400 Hz, level of acoustic aggression: 70dB(A)
- Security features: multiple independent cuts at 42°C
- Power supply
- Voltage: 220V-240V AC or 115 V AC, 50/60 Hz
- Consumption: 280 W
- Current: 1.5 A
- Fuses: primary 2 x 1.6 AT secondary 500 mAT
** All used goods are reconditioned by Tomlin Medical Pty Ltd. Used goods are not endorsed or supplied by their original manufacturer and are not subject to any manufacturer warranty. All used goods are subject to the limited warranty provided by Tomlin Medical Pty Ltd.**
