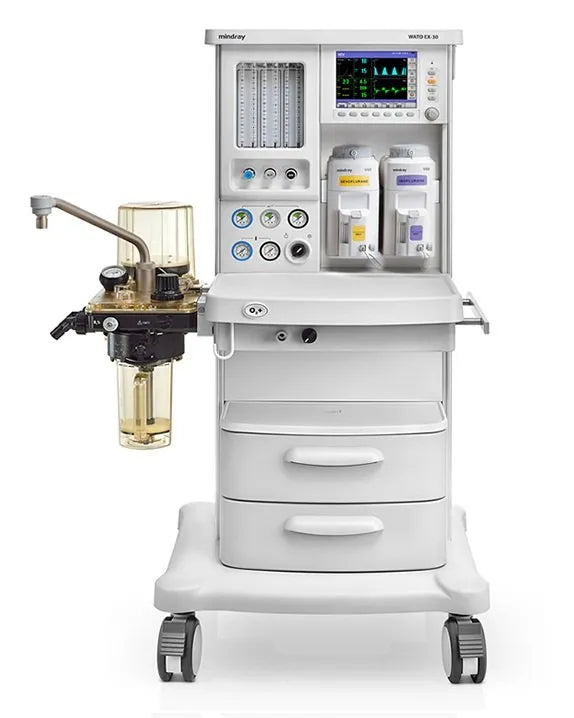

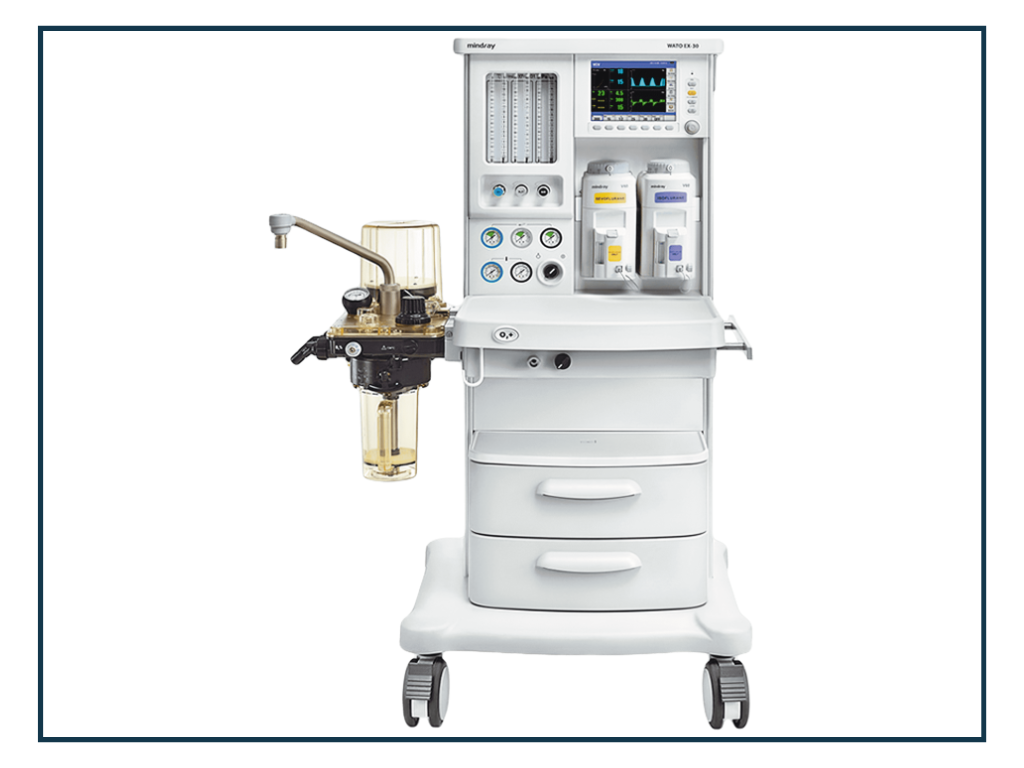

Mindray WATO EX-30 Anesthesia Machine [Refurbished]

The WATO EX-30 anesthesia machines is suitable for general anesthesia in a wide range of operating theatre patients from children to adults. With stable function, advanced safety design, reliable performance, and user-friendly interface, It gives clinical users basic monitoring measurements on a colorful LCD screen with up to 3 waveforms, including Paw, TVe, MV, Ppeak, and Pmean, with graphs of pressure and flow at the same time. Except for basic ventilation modes, WATO still offers advanced modes such as SIMV applicable for the spontaneous breathing of patients. The powerful data review supports 24-hour trends for alarm events. Besides the integrated monitoring parameters, WATO also provides external monitoring covering the sidestream of EtCO2.

Mindray WATO EX-30 Specifications:

General

• Brand: Mindray
• Model: WATO EX-30
• Category: Anaesthetic Equipment
• Frequency: 50 Hz
• Display Type: Digital

Dimensions

• Height: 1375mm
• Width: 710 mm (without breathing circuits) 880mm (with breathing circuits)
• Depth: 620 mm
• Weight:<120kg (including trolley base, without vaporizer and cylinder)

Top Shelf

• Weight limit: 30kg
• Length:550mm
• Width: 265 mm

Work Surface

• Height:820mm
• width: 500cm
• Depth: 310mm

DIN Rail

• Side of Mschine: 320 mm

Drawer-Internal dimensions

• Height: 240mm
• Width: 350mm
• Depth:275mm

Bag Arm

• Height: 1030mm
• length: 320mm
• Connection: ISO 22mm OD, 15mm ID

Screen

• Display Type: color active matrix TFT
• Display Size: 7.0 in diagonal
• Resolution: 800 x 400
• Brightness: Disadjustable
• Multi-display selectable: Standard
• Display Parameters: All settings and alarm parameters (Breath rate, I/E ratio, tidal volume, minute volume, PEEP, Pmean Ppeak, Pplat and )2 Concentration)
• Display Graphics: Waves of Pressure-Time, Flow-Time, Volume-Time, Wave of Co2 ( Optional)

Ventilator Parameter Ranges

• Tide Volume Range: 40~1500ml (VCV mode)
• Incremental settings:20~100ml (increments of 5 ml), 100~300ml (increments of 10ml) 300~1500ml (increments of 25ml)
• Pressure (inspired) range: 5~60 cmH2O increments of 1 cmH2O
• Rate Range: 4~100bpm increments of 1 bpm (VCV, P-mode) 4~60bpm increments of 1bpm (SIMV)
• Inspiratory/Expiratory ratio (I:E) range: 4:1~1:8 increments of 0.5 (VCV, P- mode)
• Inspiratory pause time: OFF, 5~60% of inspiratory time increment of 5%. Trigger window: 5-90% increments of 5% (SIMV)
• Flow Trigger: 0.5~15L/min increments of 0.5L/min (SIMV
• Pressure Trigger: -20~ -1cmH2O increments of 5% (SIMV)

Features:

• Breathing circuit with CO2 bypass valve, which supports CO2 canister exchange during surgery
• Information message displayed on screen to confirm the correct assembly of a CO2 canister
• Information message displayed for the correct assembly of a breathing circuit to provide safety confirmation
• Multi-selectable display on a colorful LCD screen
• Contemporary and ergonomic considerations
• Electronically-controlled and pneumatically-driven ventilator
• VCV, Pressure mode, SIMV, and Manual modes
• Allowing conjunction with up to 2 vaporizers
• On EX-30 and EX-20, the minimum TV is down to 40mL, making it suitable for patients from pediatric to adult without changing the breathing circuit
• External module for sidestream EtCO2measurement for EX-30
• Meets versatile applications, especially for low-flow anesthesia
• Compatible with Mindray patient monitors with a pre-designed mounting kit
