Description

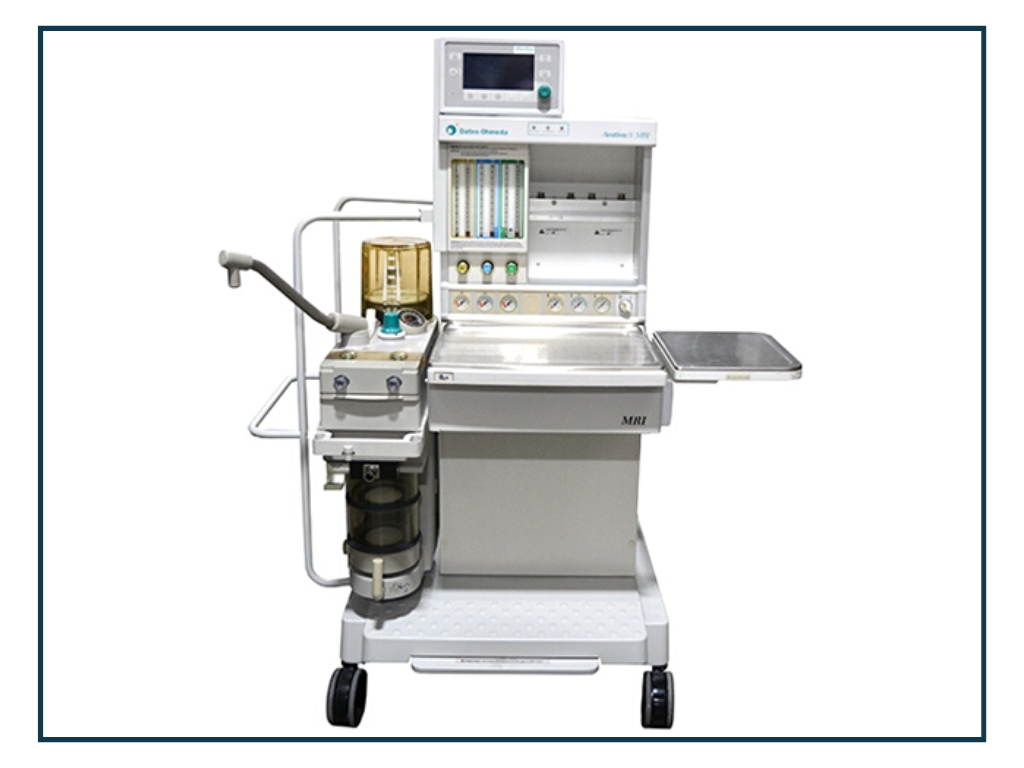

The GE Datex Ohmeda Aestiva 5 MRI is a muti-faceted anesthesia machine that can run in an MRI environment. The compact design and small footprint of the Aestiva/s MRI make it easy to move to either an MRI Suite or an Operating Room when needed. The Aestiva features the standard Datex Ohmeda user interface like the Aestiva 5, along with ventilation of the SmartVent technology and the advanced Breathing System. Coming with two options for ventilators, the 7100 and the 7900 SmartVent. The Aestive 5 MRI has an integrated alarm system that warns the operator when the machine is located in an MRI magnetic fringe field of more than 300 gauss. The GE anesthesia machine offers low and minimal flow anesthesia and reduces agent consumption.
GE Datex Ohmeda Aestiva 5 MRI Specifications:
General
- Brand: GE
- Category: Anaesthetic Equipment
Dimensions
- Height: 152 cm/59.8 in
- Width: 97.5 cm/38.4 in
- Depth: 83 cm/32.7 in
- Weight: Approximately 136 kg/300 lb
- Volume Control
- Pressure Control
- Synchronized Intermittent Mandatory Ventilation (SIMV) (optional)
- Pressure Support (PSVPro) with Apnea Backup ventilation (optional)
- Ventilator (VT) parameter ranges
- Anesthetic agent delivery: Tec 5, Tec 7
- Number of positions: 2
- Mounting: Tool-free installation Selectatec® manifold interlocks and isolates vaporizers
Current Leakage
- 120V: < 300μA
- 220V: < 500μA
Power and Battery Back-Up
- USA/Canada/Mexico: 120 Vac, 60 Hz, 10A
- Euro: 220-240 Vac, 50 Hz, 6A
- Italy/France/Belgium: 230 Vac, 50 Hz, 6A
- Japan: 100 Vac, 50 or 60 Hz, 10A
- UK: 240 Vac, 50 Hz, 6A
- Demonstrated battery backup time under typical operating conditions is 45 minutes when fully charged
- Internal rechargeable sealed lead acid
- Power Cord:Length: 5 m/16.4 ft | Rating: 10A @ 250 Vac or 15A @ 120 Vac
Communication Port
- Serial Interphase:Isolated RS-232C compatible port
Features:
- Validated for use in MRI environments up to 300 Gauss, active shielded 1.5T and 3T magnets
- Physically integrated magnetic field strength monitor (Gauss Alarm)
- Low overall height
- Features facilitate use in both the MRI suite and surgical OR
- Volume Mode, Pressure Control Mode, Pressure Support (PSVPro), Synchronized Intermittent Mandatory Ventilation (SIMV), electronic PEEP
- Tidal volume compensation
- Two key presses to total standby: end case
- One motion from mechanical to manual mode
- Cardiac bypass case mode
- Innovative patient breathing system
- Eight integrated machine hoses/cables
- Autoclavable and latex-free
- Responsive location of standard gas outlet
- Improved low flow/reduced life cycle costs
