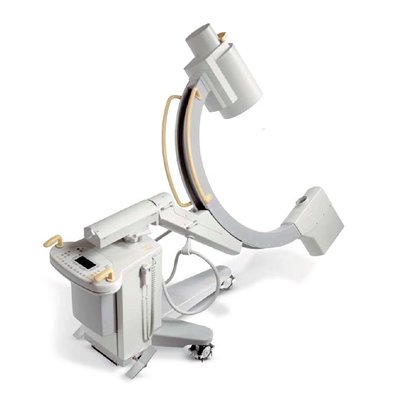

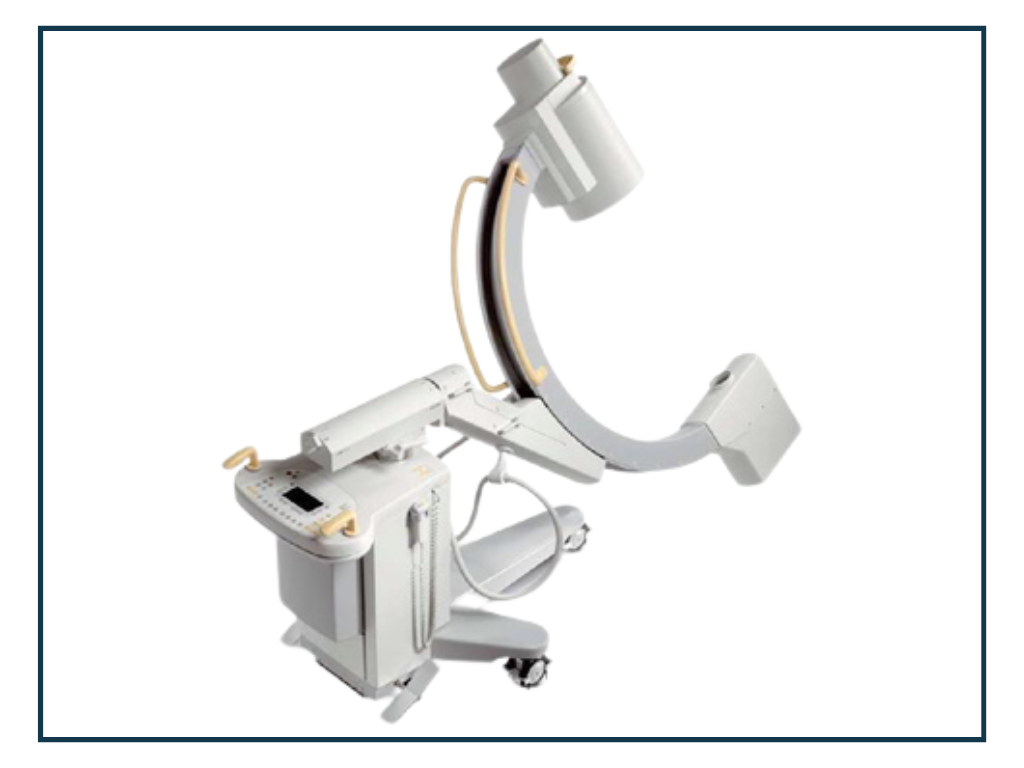

Philips BV Libra C Arm [Refurbished]


Price:
Sale price$22,000.00

Description

This is a compact, portable Philips fluoroscopy c-arm that can be used for diagnostics and surgical procedures. The cost-effective, ergonomically-designed and versatile X-ray imaging system delivers high-quality fluoroscopic images while requiring significantly less radiation dose.

Philips BV Pulsera C Arm Specifications:

General

X-Ray Generation:

  • X-ray tube: Stationary anode tube with active heat management
  • X-ray generator: DC converter, Constant Potential (CP) generator, micro-processor controlled
  • Nominal power: 3.15 kW: 110 kV, 20 mA

Geometry:

  • Free space within C-arm: 77 cm (30.3”)
  • Angulation: +90° to -25°
  • C-arm depth: 61 cm (24.0”)
  • Rotation: ± 180°, with safety stop at ± 135°
  • Source Image Distance: 98 cm (38.7”)
  • Extended angulation (optional): +90° to -45° for increased projection flexibility
  • Lowest lateral working position: 102 cm (40.0”)

Imaging chain:

  • Image intensifier: Single mode 6” HC,  Triple mode 9” HRC
  • TV camera type: Interline transfer CCD; high resolution
  • Nominal II formats: 6”: 15 cm 9”: 23, 17, and 14 cm (9”, 7” and 5”)
  • Video standard: CCIR: 625 lines; 2:1 interlaced

Options:

  • Lase Aiming Device: Yes
  • ViewForum: Multi-modality workstation
  • DVD Recorder: Yes
  • DICOM: Yes
