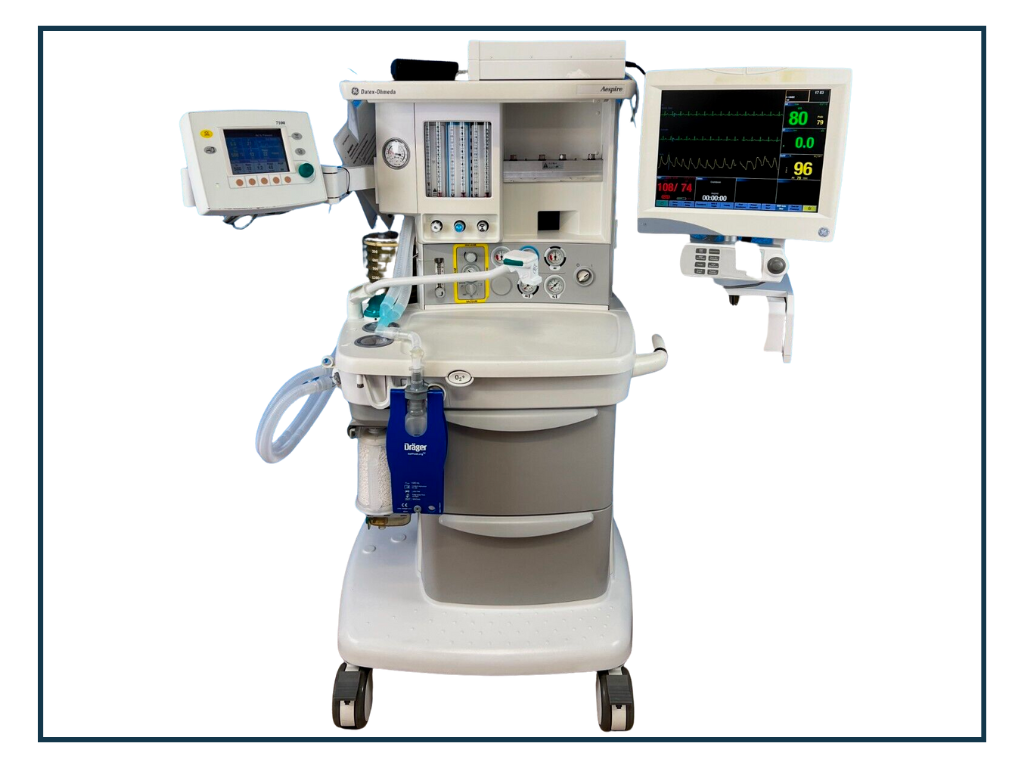

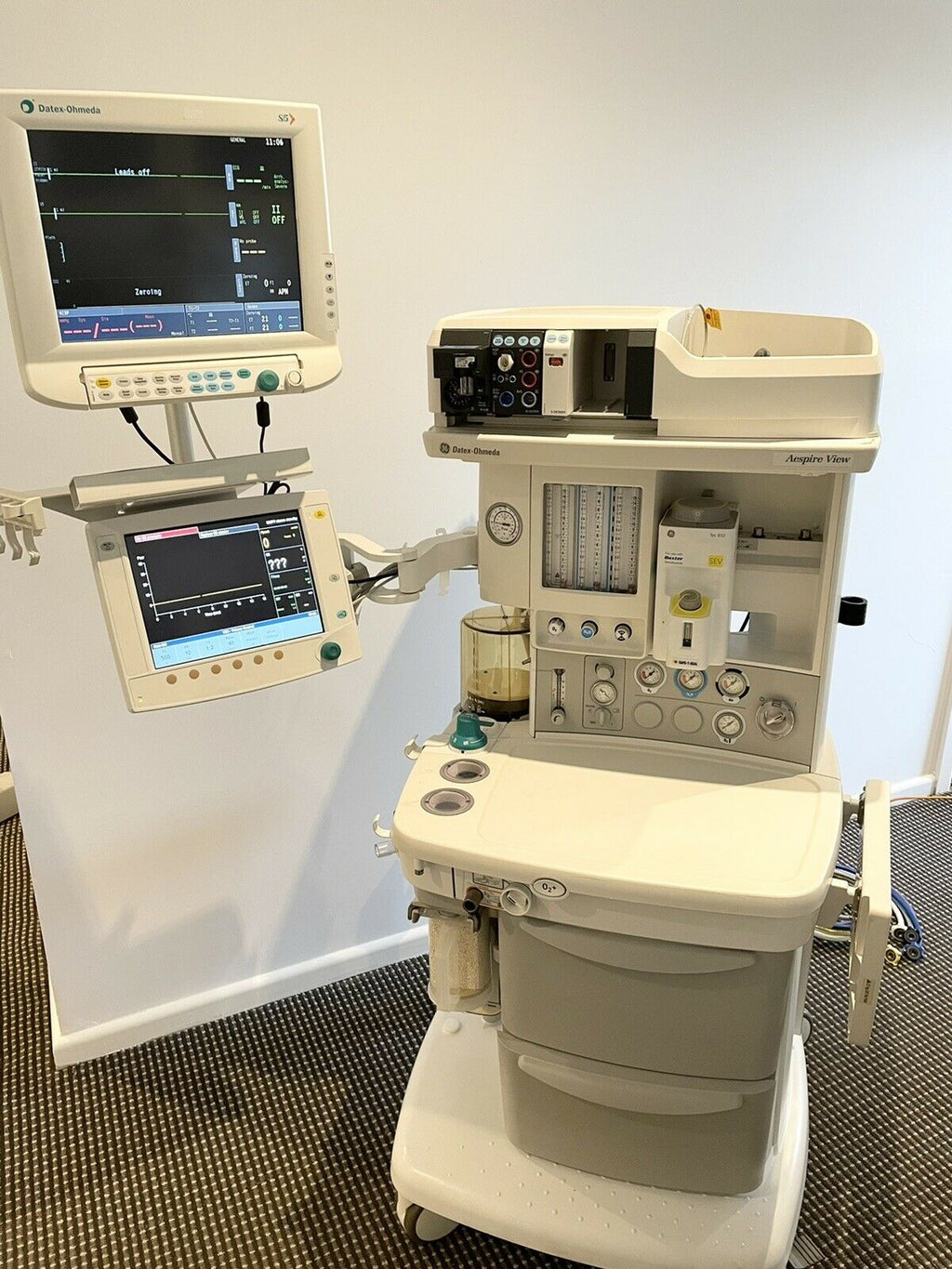

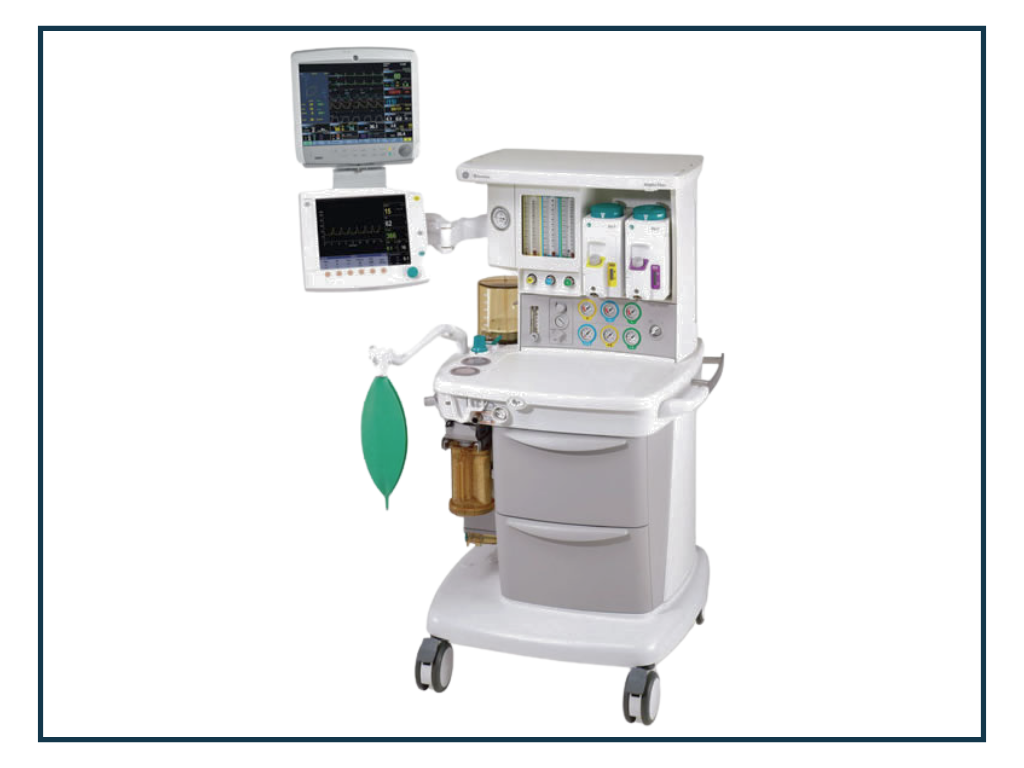

GE Datex Ohmeda Aespire View Anaesthetic Work Station [Refurbished]

• Brand: GE Datex Ohmeda
• Category: Anaesthetic Equipment
• Mounting: Trolley Mounted
• Model: GE Datex Ohmeda

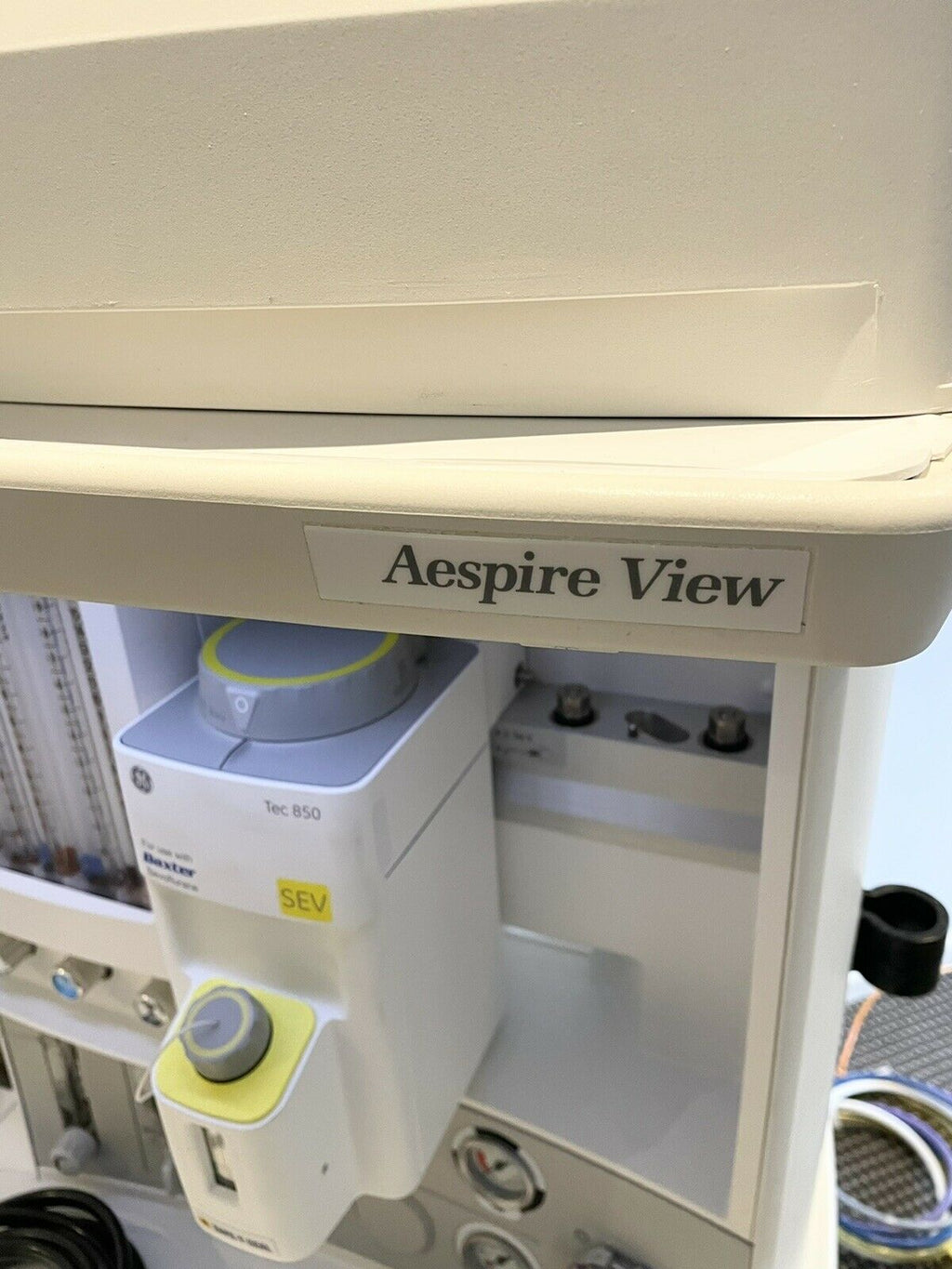

• Features: With Vaporizer, With Ventilator
• MPN: Aespire View
• Intended Use/Discipline: Anaesthesiology, Emergency Medicine, Veterinary Medicine

Size

• Height: 134.5 cm/52.9 in
• Width: 72 cm/28.3 in
• Depth: 73 cm/28.7 in
• Weight: Approximately 108 kg/238 lb

Top Shelf

• Weight limit: 34 kg/75 lb
• Width: 66 cm/26 in
• Depth: 40 cm/15.75 in

Work Surface

• Height: 81.7 cm/32.2 in
• Size: 2160 cm-2/334 in-2

DIN Rail

• Side of machine: 34.5 cm/13.6 in

Drawers (internal dimensions)

• Height: 17.5 cm/6.9 in
• Width: 33 cm/13 in
• Depth: 26.5 cm/10.4 in

Absorber Bag

• Arm length: 30.5 cm/12 in
• Bag arm height (adjustable): 87 cm (34.3 i) to 104 cm (40.9 in)

Casters

• Diameter: 12.5 cm/5 in
• Brakes: Individual locking front casters

Current Leakage

• 100/120 V: < 300μA
• Power
• Power input: 100-120 Vac, 50/60 Hz
• Power cord: Length: 5 m/16.4 ft
• Rating: 15A @ 120 Vac

Inlet/Outlet modules (120V)

• System circuit breakers: 15A
• Outlets (optional): 4 outlets on back, 3-2A, 1-3A individual breakers, optional isolation transformer

System Operation

• Temperature: 10° to 40°C/50° to 104°F
• Humidity: 15 to 95% relative humidity (non-condensing) per IEC 68-2-3
• Altitude: -440 to 3565 m/500 to 800 mmHg

System Storage

• Temperature: -15° to 50°C/-5° to 122°F
• Humidity: 10 to 95% relative humidity (including condensing) per IEC 68-2-3
• Altitude: -440 to 3565 m/500 to 800 mmHg
• Oxygen cell storage: -15° to 50°C/5° to 122°F; 10 to 95% relative humidity; 500 to 800 mmHg

Electromagnetic Compatibility

• Immunity: Complies with all requirements of EN 60601-1-2
• Emissions: CISPR 11 group 1 class B
• Approvals: UL 2601-1; CSA C22.2 #601.1; EN/IEC 60601-1; CE 0197

Gas Supply

• Pipeline input range: 240 kPa to 600 kPa/35 psig to 88 psig
• Pipeline connections: DISS-male, DISS-female, DIN 13252, AS4059, S90-116 or NIST (ISO 5359). All fittings are available for O2, N2O, and Air, and contain pipeline filter and check valve.
• Cylinder input: Pin indexed by CGA-V-1 or DIN (nut and gland); contains input filter and check valve
  Note: Maximum 3 cylinders; two inboard-mounted, one outboard mounted.
• Primary regulator diaphragm minimum burst pressure: 2758 kPa/400 psig
• Primary regulator nominal output: < 338 kPa/49 psig Pin indexed cylinder connections
• < 407 kPa/59 psig DIN cylinder connections

Features:

• Optional suction control helps eliminate the needs stand alone suction. Optional auciliary O2 supplies and additional oxygen source. LED light strip provides bi-level work surface illumination.
• Auxiliary Common Gas outlet helps facilitate low-pressure leak test.
• Lightweight and compact for easy manoeuvrability.
• Optional integrated auxiliary O2 flowmeter and suction control.
